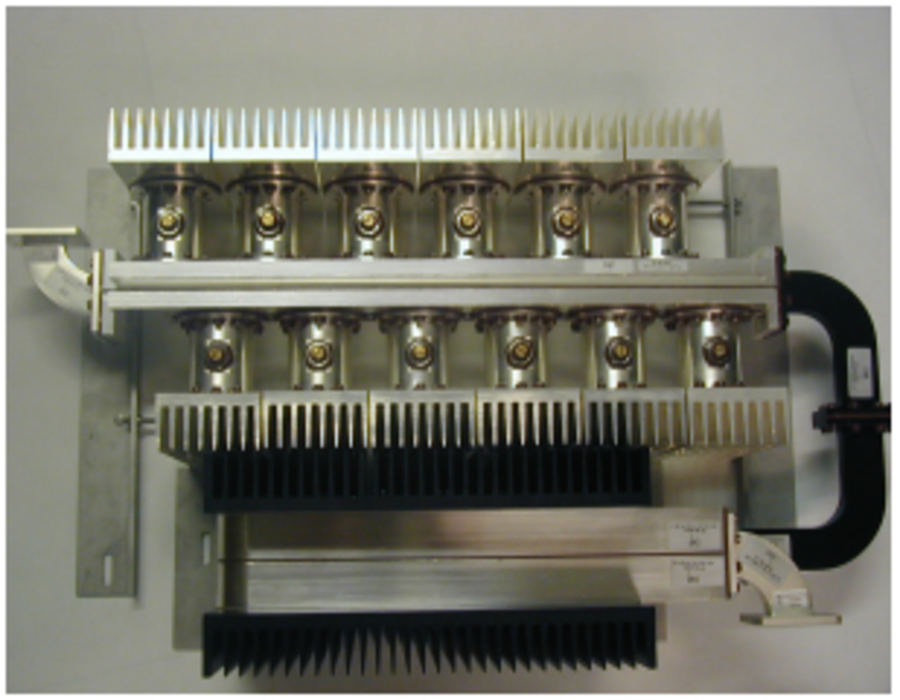

    Waveguide WR112 Bandstop Filter – 7800 – 7880 MHz

    BSF-WG-7800-7880-40-WR112-WR112-CUSTOM 001342
    Part number: 001342

    This Waveguide Band Stop Filter allows you to sharply reject (40 dB) the 7800 – 7880 MHz frequency range while avoiding to degrade your signal from 7750 to 7765 MHz and from 7900 to 8340 MHz. Indeed it show very little insertion losses (0.4 dB) and a vswr of 1.15:1 max.

    Stock: 0
    Add to compareRequest quotation

    Additional Information

    Fmin rejected (MHz)

    7800

    Fmax rejected (MHz)

    7880

    Rejection value (dB)

    40

    Passband 1 Fmin (MHz)

    7750

    Passband 1 Fmax (MHz)

    7765

    Passband 1 Insertion loss (dB)

    0.4

    Passband 2 Fmin (MHz)

    7900

    Passband 2 Fmax (MHz)

    8340

    Passband 2 Insertion loss (dB)

    0.4

    VSWR

    1.15:1

    Power Handling (W)

    2000

    Warranty

    3 years

    Connectors

    WR112

    Product Description

    This Notch Filter 001342 allows you to reject unwanted signals within your frequency range of interest while keepin it unaltered thanks to low insertion losses and VSWR. This band reject filter is specially design to handle power up to 2000 W.
