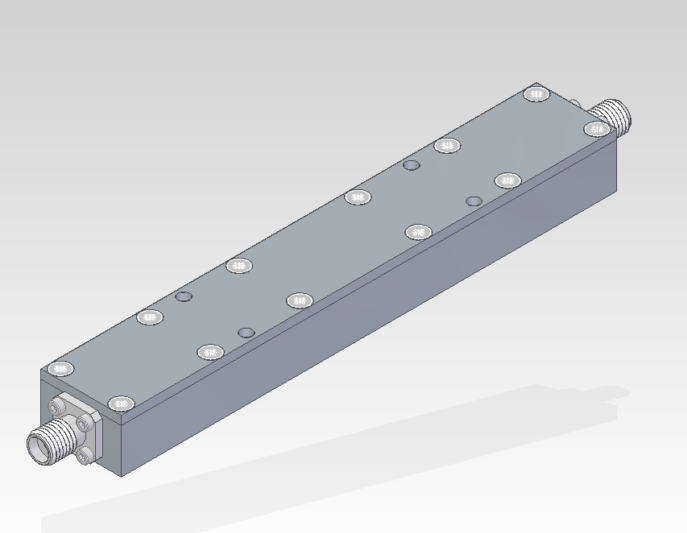

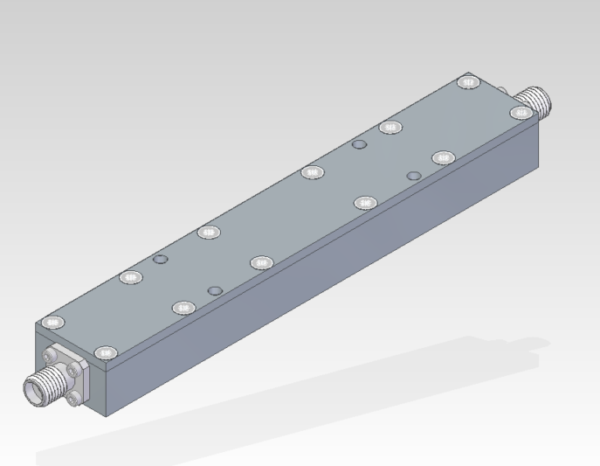

    Low Pass Filter DC 1 GHz

    LPF-SS-1000-1500-10000-40-SF-SF
    Part number: 011001

    This low pass filter offers a passband from DC to 1000 MHz with 1.0 dB of insertion losses and a high rejection of 40 dB at 1500 MHz.
    Fitted with SMA connectors, it offers a VSWR of 1.5:1 and a power handling of 2 W average.

    lead time:
    8-10 weeks
    ?
    Stock: 0
    Add to compareRequest quotation

    Additional Information

    Fmax (MHz)

    1000

    Insertion Loss (dB)

    1.0

    Rejection (dB)

    40

    Rejection Frequency (MHz)

    1500

    VSWR

    1.5:1

    Power Handling (W)

    2

    Connectors

    SMA

    ROHS Compliance

    ROHS compliant against ROHS 10 substances (2015/863/EU)

    Warranty

    3 years

    Temperature Stability

    Standard

    Product Description

    Lowpass filter LPF-SS-1000-1500-10000-40-SF-SF is able to let your signal pass from DC to 1000 with very low insertion losses < 1.0 dB. This product allows you to cut off unwanted frequencies starting from 1500 MHz with a very high attenuation of 40 dB.

    This filter (PN 011001) can handle power up to 2 W CW in a low form factor of 111 x 18 x 12 mm (4,37 x 0,71 x 0,47 Inche(s)).

    This low-pas filter is ROHS compliant and it doesn’t containt REACH SVHCs. This device is operational in a temperature range of -40 ° C to +80 ° C. .

    Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.

    Please feel free to ask if you need any customisation or answers to your questions about this product.
