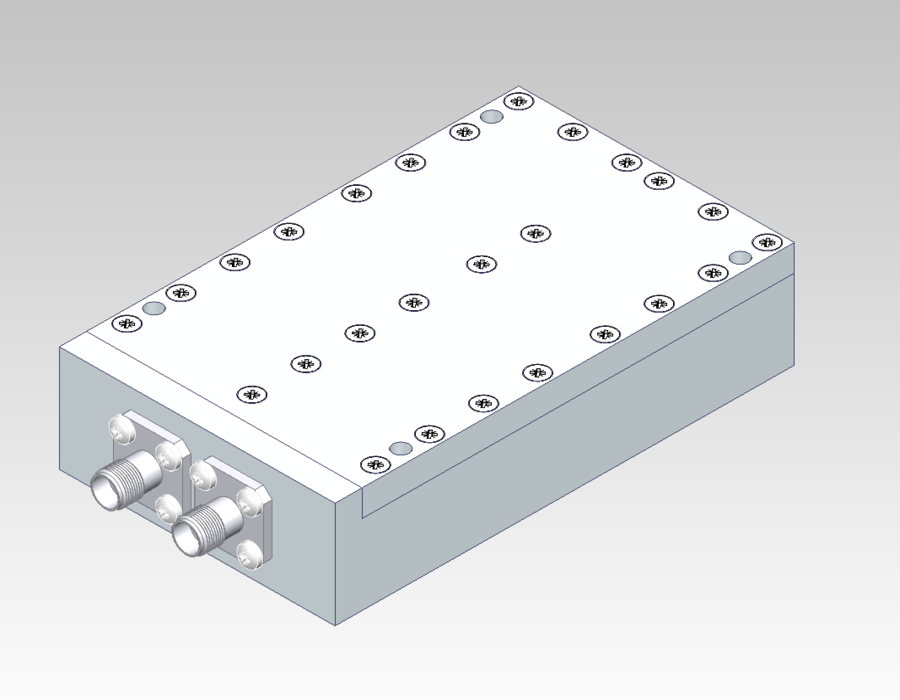

    Low Pass Filter 1100 MHz 1kW

    LPF-CL-1350-5000-1.15-SF-SF
    Part number: 011002

    This low pass filter offers a passband from DC to 1100 MHz with 0.5 dB of insertion losses and a high rejection of 65 dB at 2060 MHz.
    Fitted with SMA connectors, it offers a VSWR of 1.5:1 and a power handling of 100 W average.

    Stock: 0
    CompareRequest quotation

    Additional Information

    Fmax (Mhz)

    1100

    Insertion Loss(dB)

    0.5

    Rejection (dB)

    65

    Rejection Frequency (MHz)

    2060

    VSWR

    1.5:1

    Power Handling average (W CW)

    100

    Connectors

    SMA

    Warranty

    3 years

    Product Description

    Lowpass filter LPF-CL-1350-5000-1.15-SF-SF is able to let your signal pass from DC to 1100 with very low insertion losses < 0.5 dB. This product allows you to cut off unwanted frequencies starting from 2060 MHz with a very high attenuation of 65 dB.

    This filter can handle power up to 100 W CW in a low form factor of 85 x 51 x 20 mm (3,35 x 2,01 x 0,79 Inche(s)).

    This device is operational in a temperature range of -40 ° C to +85 ° C. It can handle a storage temperature ranging from -55 ° C to + 125 ° C.

    This low-pas filter is ROHS compliant and it doesn’t containt REACH SVHCs. Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.

    Please feel free to ask if you need any customisation or answers to your questions about this product.
