This high pass filter provides a great VSWR (< 2.0:1) and loss insertion losses of 0.7 dB over its frequency range (6000 MHz to 18000 MHz). This product offers a high rejection of 20 dB from DC to 4000 MHz. Thanks to an high thermal performances substrate, its specifications are very consistant over its operating temperature range ( -40°C to +85°C).
In stockAdd to compare
|Insertion Loss (dB)|
|Rejection Value (dB)|
|Rejection Frequency (MHz)|
|Power Handling (W)|
ROHS compliant against ROHS 10 substances (2015/863/EU)

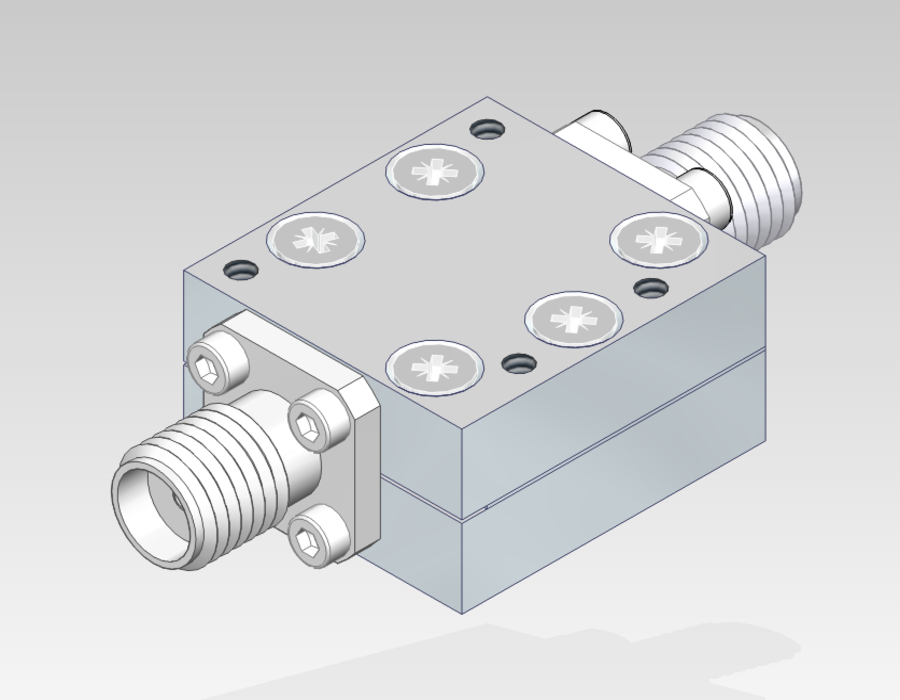

This Suspended Substrate High Pass Filter (PN 800077) allows you to suppress unwanted signals from DC to 4000 MHz with a strong attenuation of 20 dB min. Thanks to its low insertion losses (0.7 dB max.) and VSWR (2.0:1 max), it doesn’t deteriorate your signal within its frequency range (6000 to 18000 MHz).
Besides a low form factor of 9.2 x 17.5 x 10.2 mm ( 0.36 x 0.69 x 0.4 Inch(es)) this product can handle power up to 2 on a wide range of temperature ( -40°C to +85°C) while complying with all the specfications.
This high-pass filter does not contain any REACH SVHC and is ROHS compliant.
Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
Please feel free to ask if you need any customisation or answers to your questions about this product.
