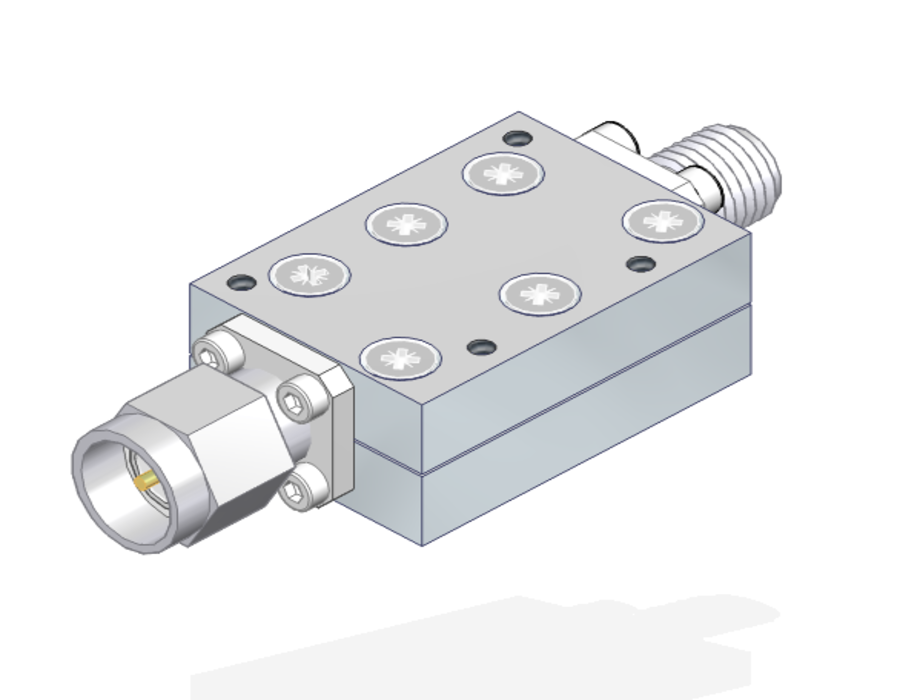

    High Pass Filter 4.4 – 18 GHz

    HPF-SS-4400-18000-1.3-SF-SM
    Part number: 800023

    490,00

    This high pass filter provides a great VSWR (< 2.0:1) and loss insertion losses of 1 dB over its frequency range (4400 MHz to 18000 MHz). This product offers a high rejection of 30 dB from DC to 3075 MHz. Fitted with SMA connectors it can handle up to 2 W CW.

    lead time:
    8-10 weeks
    ?
    Stock: 7

    In stock

    ?

    Quantity Price
    1 - 4 490,00
    5 - 9 425,00
    10 - 24 365,00
    25 - 49 310,00
    50+ 255,00
    Prices do not include import duties that may apply out of Europe
    Add to compare

    Additional Information

    Fmin (MHz)

    4400

    Fmax (MHz)

    18000

    Insertion Loss (dB)

    1

    Rejection Value (dB)

    30

    Rejection Frequency (MHz)

    3075

    VSWR

    2.0:1

    Power Handling (W)

    2

    Connectors

    SMA

    Weight (g)

    20

    ROHS

    ROHS compliant against ROHS 10 substances (2015/863/EU)

    Warranty

    3 years

    Temperature Stability

    Standard

    Product Description

    This Suspended Substrate High Pass Filter (PN 800023) allows you to suppress unwanted signals from DC to 3075 MHz with a strong attenuation of 30 dB min. Thanks to its low insertion losses (1 dB max.) and VSWR (2.0:1 max), it doesn’t deteriorate your signal within its frequency range (4400 to 18000 MHz).

    Besides a low form factor of 24.8 x 17.5 x 10.2 mm ( 0.98 x 0.69 x 0.4 Inch(es)) this product can handle power up to 2 on a wide range of temperature ( -40°C to +70°C) while complying with all the specfications.

    This high-pass filter does not contain any REACH SVHC and is ROHS compliant.
    Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.

    Please feel free to ask if you need any customisation or answers to your questions about this product.
