This high pass filter is designed with 19 poles, offering a rejection of 50 dB from DC to 2550 MHz very close from the operational frequency range (3300 to 18 000 MHz). Thanks to an high thermal performances substrate, its specifications are very consistent over its operating temperature range ( -40°C to +70°C).
|Insertion Loss (dB)|
|Rejection Frequency (MHz)|
ROHS compliant against ROHS 10 substances (2015/863/EU)

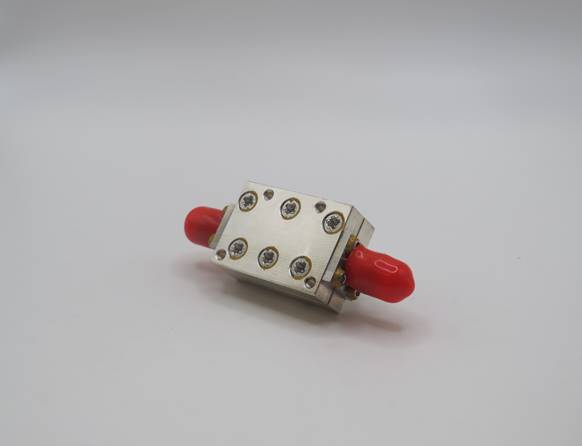

This Suspended Substrate High Pass Filter (PN 800272) allows you to suppress unwanted signals from DC to 2550 MHz with an attenuation of 50 dB min. Thanks to its low insertion losses (1 dB max.) and VSWR (2.0:1 max), it doesn’t deteriorate your signal within its frequency range (3300 to 18000 MHz).
Besides a low form factor of 24.7 x 17.5 x 10.2 mm ( 0.97 x 0.69 x 0.4 Inch(es)) this product can handle power up to 2 on a wide range of temperature ( -40°C to +70°C) while complying with all the specifications.
This high-pass filter does not contain any REACH SVHC and is ROHS compliant.
Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
Please feel free to ask if you need any customization or answers to your questions about this product.
