This high pass filter provides a great VSWR (< 2.0:1) and loss insertion losses of 1 dB over its frequency range (2800 MHz to 18000 MHz). This product offers a high rejection of 30 dB from DC to 2215 MHz. Fitted with SMA connectors it can handle up to 2 W CW.
Out of stockAdd to compare
|Insertion Loss (dB)|
|Rejection Value (dB)|
|Rejection Frequency (MHz)|
|Power Handling (W)|
ROHS compliant against ROHS 10 substances (2015/863/EU)

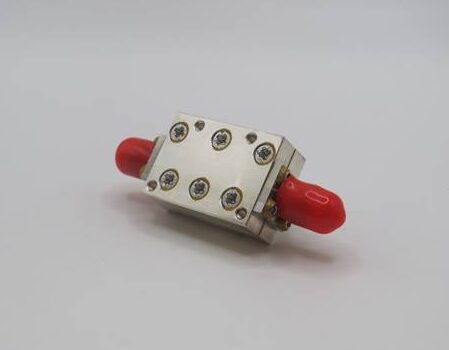

This Suspended Substrate High Pass Filter (PN 800091) allows you to suppress unwanted signals from DC to 2215 MHz with a strong attenuation of 30 dB min. Thanks to its low insertion losses (1 dB max.) and VSWR (2.0:1 max), it doesn’t deteriorate your signal within its frequency range (2800 to 18000 MHz).
Besides a low form factor of 24.8 x 17.5 x 10.2 mm ( 0.98 x 0.69 x 0.4 Inch(es)) this product can handle power up to 2 on a wide range of temperature ( -40°C to +70°C) while complying with all the specifications.
This high-pass filter does not contain any REACH SVHC and is ROHS compliant.
Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
Please feel free to ask if you need any customisation or answers to your questions about this product.
