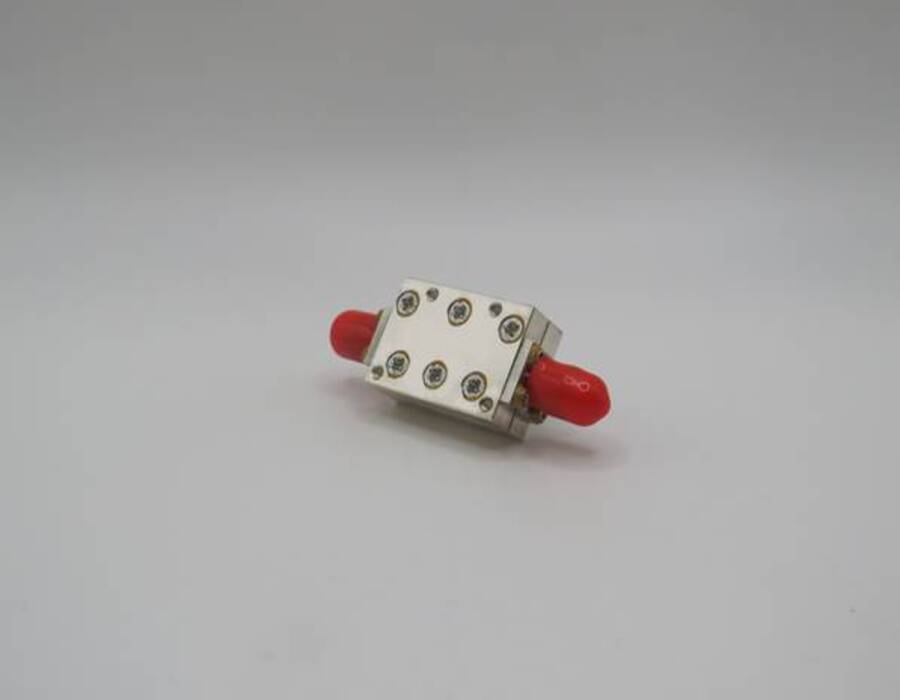

    High Pass Filter 2.0 – 18 GHz

    HPF-SS-2000-18000-1.30-SF-SF
    Part number: 800070

    475,00

    This high pass filter provides a great VSWR (< 2.0:1) and loss insertion losses of 1 dB over its frequency range (2000 MHz to 18000 MHz). This product offers a high rejection of 30 dB from DC to 1400 MHz. Fitted with SMA connectors it can handle up to 2 W CW.

    Stock: 7

    In stock

    ?

    Quantity Price
    1 - 4 475,00
    5 - 9 415,00
    10 - 24 355,00
    25 - 49 300,00
    50+ 250,00
    Prices do not include import duties that may apply out of Europe
    Compare

    Additional Information

    Fmin (MHz)

    2000

    Fmax (Mhz)

    18000

    Insertion Loss(dB)

    1

    Rejection Value(dB)

    30

    Rejection Frequency (MHz)

    1400

    VSWR

    2.0:1

    Power Handling (W CW)

    2

    Connectors

    SMA

    Weight (g)

    20

    ROHS

    ROHS compliant against ROHS 10 substances (2015/863/EU)

    Warranty

    3 years

    Product Description

    This Suspended Substrate High Pass Filter allows you to suppress unwanted signals from DC to 1400 MHz with a strong attenuation of 30 dB min. Thanks to its low insertion losses (1 dB max.) and VSWR (2.0:1 max), it doesn’t deteriorate your signal within its frequency range (2000 to 18000 MHz).

    Besides a low form factor of 24.8 x 17.5 x 10.2 mm ( 0.98 x 0.69 x 0.4 Inch(es)) this product can handle power up to 2 on a wide range of temperature ( -40°C to +70°C) while complying with all the specfications.

    This high-pass filter does not contain any REACH SVHC and is ROHS compliant.
    Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.

    Please feel free to ask if you need any customisation or answers to your questions about this product.
