Dimensions: 83 x 60 x 70.3 mm ( 3.27 x 2.36 x 2.77 Inch(es)).

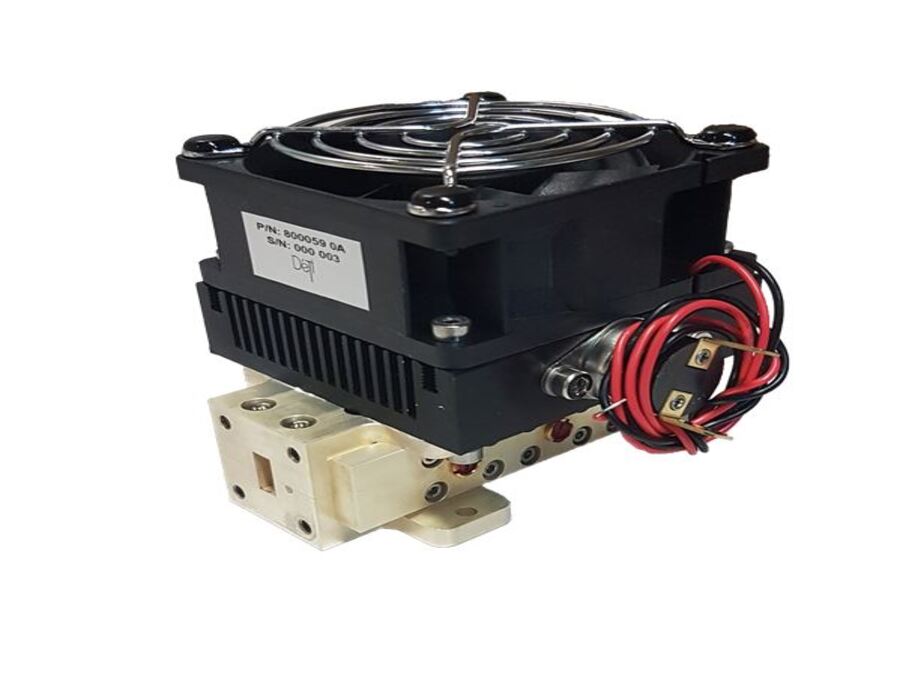

Waveguide WR34 Bandstop Filter – 29.7 – 29.9 GHz
BSF-WG-29700-29900-25-WR34-CUSTOM-800059
Part number: 800059This Waveguide Band Stop Filter allows you to sharply reject (25 dB) the 29700 – 29900 MHz frequency range while avoiding to degrade your signal from 27500 to 29500 MHz and from 30000 to 31000 MHz. Indeed it show very little insertion losses (1 dB) and a vswr of 1.5:1 max.
Stock: 0
Additional Information
| Fmin rejected (MHz) | 29700 |
|---|---|
| Fmax rejected (MHz) | 29900 |
| Rejection value (dB) | 25 |
| Passband 1 Fmin (MHz) | 27500 |
| Passband 1 Fmax (MHz) | 29500 |
| Passband 1 Insertion loss (dB) | 1 |
| Passband 2 Fmin (MHz) | 30000 |
| Passband 2 Fmax (MHz) | 31000 |
| Passband 2 Insertion loss (dB) | 1 |
| VSWR | 1.5:1 |
| Power Handling (W) | 250 |
| Connectors | WR34 |
| Warranty | 3 years |
Product Description
This Notch Filter 800059 allows you to reject unwanted signals within your frequency range of interest while keeping it unaltered thanks to low insertion losses and VSWR. This band reject filter is specially design to handle power up to 250 W while keeping its performances, and up to 350 W with only a minor degradation. In order to achieve such power handling as such high frequencies it comes with a 12V 1.8W fan. A 70° vigiterm is also included, allowing you to be aware before its temperature goes too high in case of an input power >350 W.
