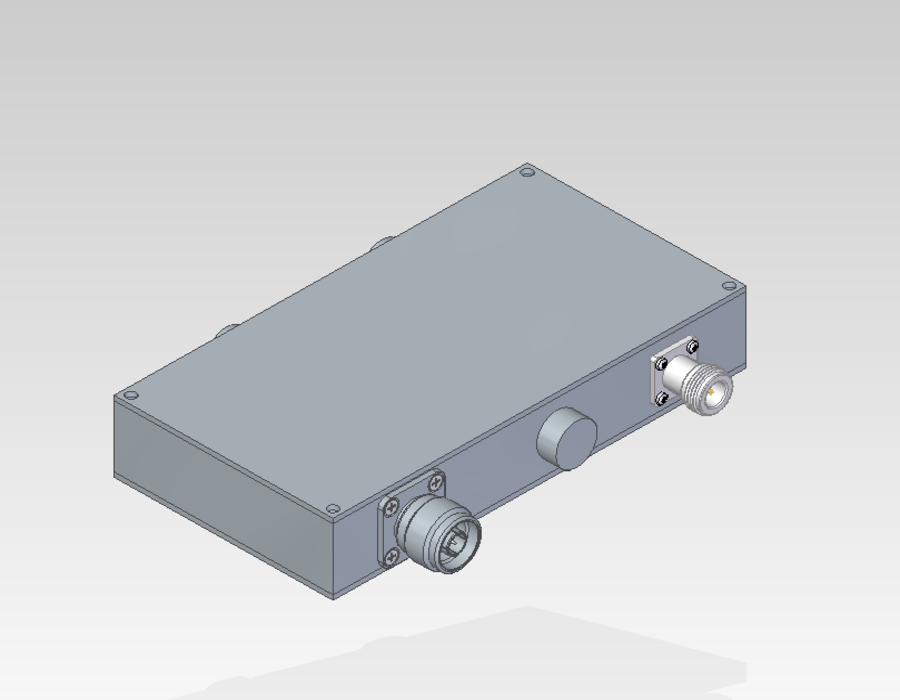

    Bandstop Filter – 1090 MHz

    BSF-IN-1089-1091-80-NM-NF
    Part number: 011051

    This Mecanical Interdigited Band Stop Filter allows you to sharply reject (80 dB) the 1089 – 1091 MHz frequency range while avoiding to degrade your signal from 1020 to 1040 MHz. Indeed it show very little insertion losses (0.5 dB) and a vswr of 1.20:1 max. It is design to cope with very high input power as high as 200W average and 4000 W peak.

    Stock: 0
    Add to compareRequest quotation

    Additional Information

    Fmin rejected (MHz)

    1089

    Fmax rejected (MHz)

    1091

    Rejection value (dB)

    80

    Passband 1 Fmin (MHz)

    1020

    Passband 1 Fmax (MHz)

    1040

    Passband 1 Insertion loss (dB)

    0.5

    VSWR

    1.20:1

    Power Handling (W)

    200

    Peak Power (kW)

    4000

    Connectors

    N

    Warranty

    3 years

    Product Description

    This Notch Filter 011051 allows you to reject unwanted signals within your frequency range of interest while keepin it unaltered thanks to low insertion losses and VSWR. This band reject filter is specially design to handle power up to 200 W.
