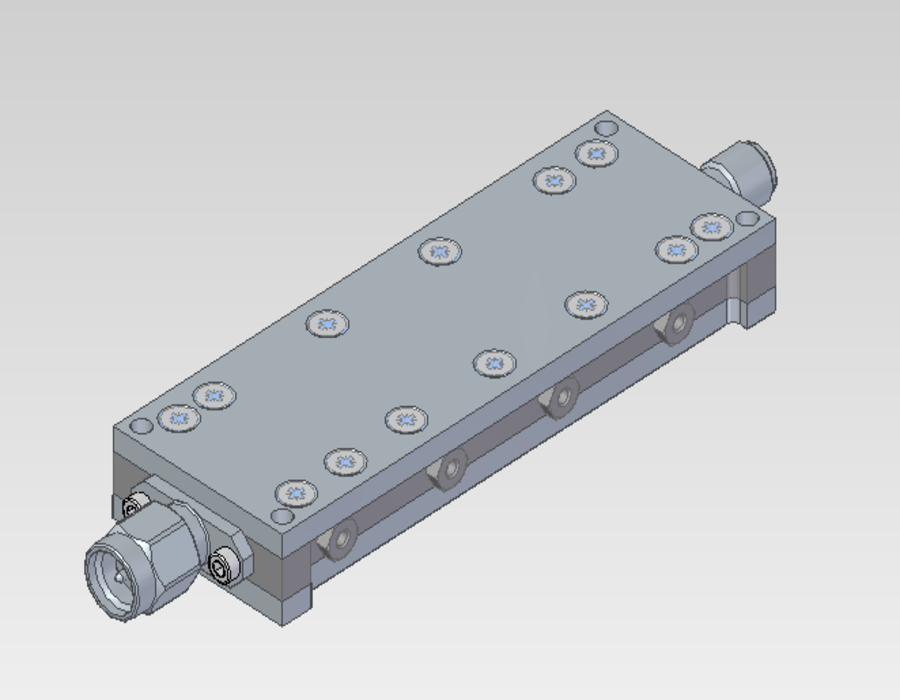

    Bandstop Filter – 7.9 – 8.4 GHz

    BSF-CL-7900-8400-50-SM-SF
    Part number: 800141

    This Coxial Lines Mecanical Band Stop Filter allows you to sharply reject (50 dB) the 7900 – 8400 MHz frequency range while avoiding to degrade your signal from DC to 7500 MHz and from 8800 to 20000 MHz. Indeed it show very little insertion losses (1 dB) and a vswr of 1.6:1 max.

    Stock: 0
    Add to compareRequest quotation

    Additional Information

    Fmin rejected (MHz)

    7900

    Fmax rejected (MHz)

    8400

    Rejection value (dB)

    50

    Passband 1 Fmin (MHz)

    DC

    Passband 1 Fmax (MHz)

    7500

    Passband 1 Insertion loss (dB)

    1

    Passband 2 Fmin (MHz)

    8800

    Passband 2 Fmax (MHz)

    20000

    Passband 2 Insertion loss (dB)

    1

    VSWR

    1.6:1

    Power Handling (W)

    1

    Connectors

    SMA

    Warranty

    3 years

    Product Description

    This Notch Filter 800141 allows you to reject unwanted signals within your frequency range of interest while keepin it unaltered thanks to low insertion losses and VSWR. This band reject filter is specially design to handle power up to 1 W.
