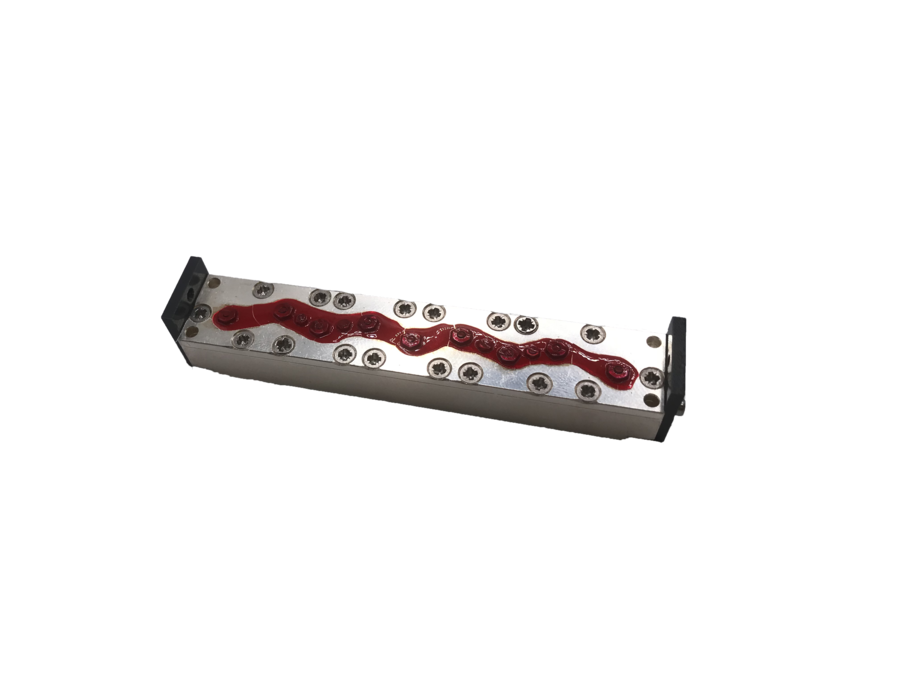

This Cavity Bandpass filter shows high-end performances in its 7900 MHz to 8400 MHz bandwidth. Indeed, it offers very low insertion losses < 1.1 dB and a VSWR < 1.45:1. Futhermore, it has a strong rejection of 53 dB from DC to 7750 MHz and of 50 dB starting from 11850 MHz. Moreover, it can cope with an average input power up to 40 W CW in a small volume of 82 x 15 x 12.7 mm ( 3.23 x 0.59 x 0.5 Inch(es)).
In stockAdd to compare
|Insertion Loss (dB)|
|Rejection Frequency 01 (MHz)|
|Rejection Value 01 (dB)|
|Rejection Frequency 02 (MHz)|
|Rejection Value 02 (dB)|
|Power Handling (W)|
ROHS compliant against RoHS 10 substances (2015/863/EU)
This band-pass filter (PN 001233) allows you to reduce parasitic frequency both before and after your frequency range of interest. Indeed, it can cut out signals ranging from DC to 7750 MHz with 53 dB of attenuation and starting from 11850 MHz with 50 dB of attenuation.
Beside high values of rejection it doesn’t degrade your signal of interested within its bandwidth (7900 to 8400 MHz) because of its low insertion losses (1.1 dB max) and VSWR (1.45:1 max).
Designed to be as small as possible (82 x 15 x 12.7 mm ( 3.23 x 0.59 x 0.5 Inch(es)). ) it can handle up to 40 W of average power, and is fitted with SMA connectors.
This rugged design can operate on a large temperature range (-30° C to +70° C) while still matching all its specifications.
Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
Please feel free to ask if you need any customisation or answers to your questions about this product.
