    Band Pass Filter 7250 – 7750 MHz (2)

    BPF-CA-7250-7750-CUSTOM - 001235
    Part number: 001235

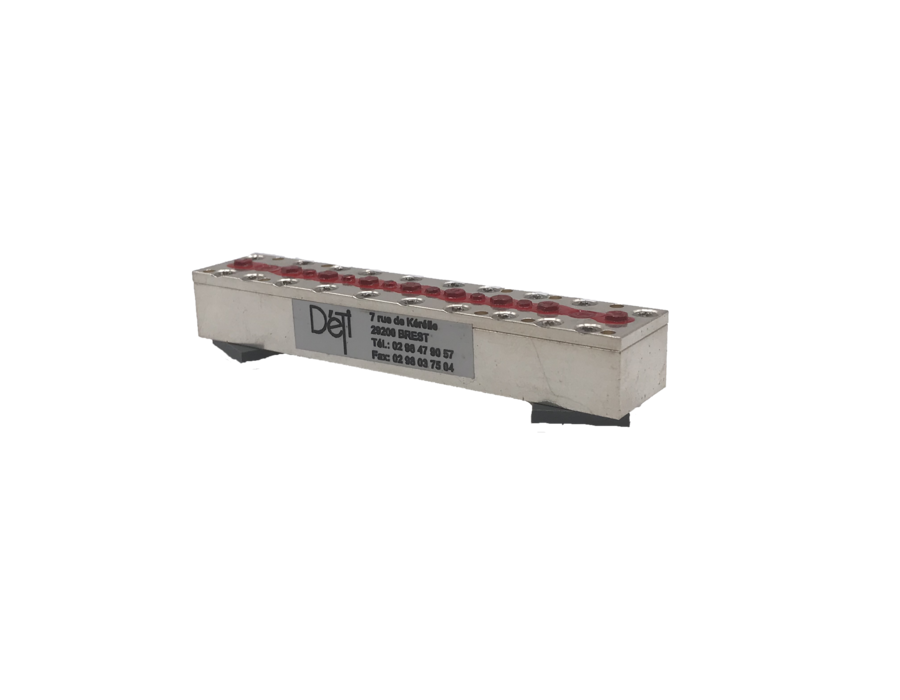

    This Cavity Bandpass filter shows high-end performances in its 7250 MHz to 7750 MHz bandwidth. Indeed, it offers very low insertion losses < 1.1 dB and a VSWR < 1.38:1. Futhermore, it has a strong rejection of 65 dB from DC to 6100 MHz and of 48 dB starting from 7900 MHz. Moreover, it can cope with an average input power up to 1.5 W CW in a small volume of 82 x 16 x 15 mm ( 3.23 x 0.63 x 0.59 Inch(es)).

    Stock: 0
    Add to compareRequest quotation

    Additional Information

    Fmin (MHz)

    7250

    Fmax (MHz)

    7750

    Insertion Loss (dB)

    1.1

    Ripple (dB)

    0.4

    VSWR

    1.38:1

    Rejection Frequency 01 (MHz)

    6100

    Rejection Value 01 (dB)

    65

    Rejection Frequency 02 (MHz)

    7900

    Rejection Value 02 (dB)

    48

    Power Handling (W)

    1.5

    Connectors

    SMA

    ROHS

    ROHS compliant against RoHS 10 substances (2015/863/EU)

    Warranty

    3 years

    Product Description

    This band-pass filter (PN 001235) allows you to reduce parasitic frequency both before and after your frequency range of interest. Indeed, it can cut out signals ranging from DC to 6100 MHz with 65 dB of attenuation and starting from 7900 MHz with 48 dB of attenuation.
    Beside high values of rejection it doesn’t degrade your signal of interested within its bandwidth (7250 to 7750 MHz) because of its low insertion losses (1.1 dB max) and VSWR (1.38:1 max).
    Designed to be as small as possible (82 x 16 x 15 mm ( 3.23 x 0.63 x 0.59 Inch(es)). ) it can handle up to 1.5 W of average power, and is fitted with SMA connectors.
    This rugged design can operate on a large temperature range (-40° C to +70° C) while still matching all its specifications.
    Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
    Please feel free to ask if you need any customisation or answers to your questions about this product.
