    Band Pass Filter 4230 – 4232 MHz

    BPF-CA-4230-4232-CUSTOM-001181
    Part number: 001181

    This Cavity Bandpass filter shows high-end performances in its 4230 MHz to 4232 MHz bandwidth. Indeed, it offers very low insertion losses < 0.5 dB and a VSWR < 1.5:1. Furthermore, it has a strong rejection of 40 dB from DC to 4081 MHz and of 40 dB starting from 4381 MHz. Moreover, it can cope with an average input power up to 30 W CW in a small volume of 30 x 82.9 x 37.2 mm ( 1.18 x 3.26 x 1.46 Inch(es)).

    Stock: 0
    Add to compareRequest quotation

    Additional Information

    Fmin (MHz)

    4230

    Fmax (MHz)

    4232

    Insertion Loss (dB)

    0.5

    VSWR

    1.5:1

    Rejection Frequency 01 (MHz)

    4081

    Rejection Value 01 (dB)

    40

    Rejection Frequency 02 (MHz)

    4381

    Rejection Value 02 (dB)

    40

    Power Handling (W)

    30

    Connectors

    SMA

    ROHS

    ROHS compliant against RoHS 10 substances (2015/863/EU)

    Warranty

    3 years

    Product Description

    This band-pass filter (PN 001181) allows you to reduce parasitic frequency both before and after your frequency range of interest. Indeed, it can cut out signals ranging from DC to 4081 MHz with 40 dB of attenuation and starting from 4381 MHz with 40 dB of attenuation.
    Beside high values of rejection it doesn’t degrade your signal of interested within its bandwidth (4230 to 4232 MHz) because of its low insertion losses (0.5 dB max) and VSWR (1.5:1 max).

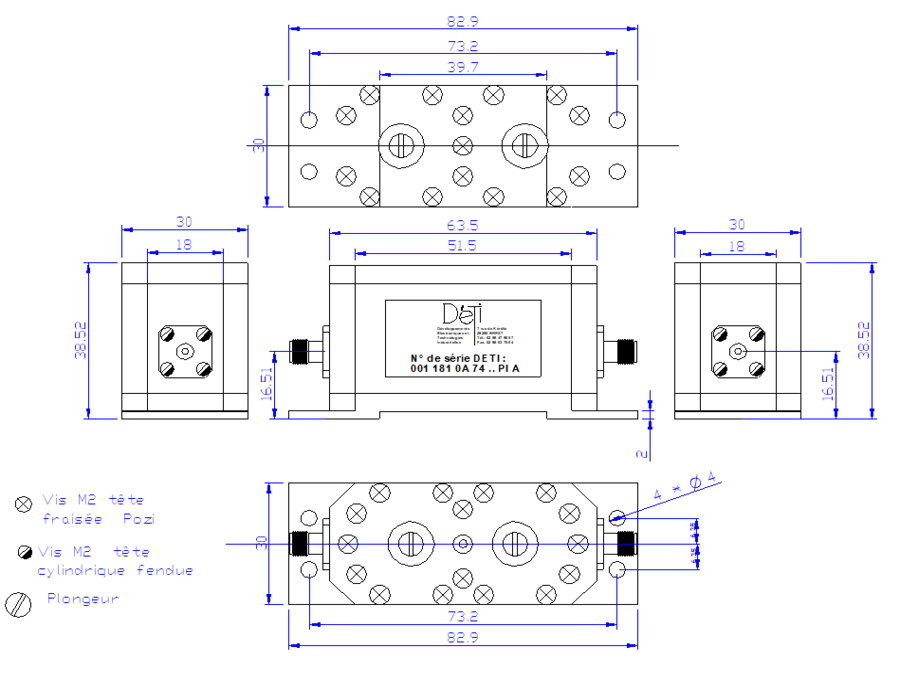

    Designed to be as small as possible (30 x 82.9 x 37.2 mm ( 1.18 x 3.26 x 1.46 Inch(es)). ) it can handle up to 30 W of average power, and is fitted with SMA connectors.
    This rugged design can operate on a large temperature range (-20° C to +70° C) while still matching all its specifications.
    Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
    Please feel free to ask if you need any customisation or answers to your questions about this product.
