    Band Pass Filter 23.1 GHz

    BPF-IN-21000-60-22700-23500-25000-60-SF-SF
    Part number: 011040

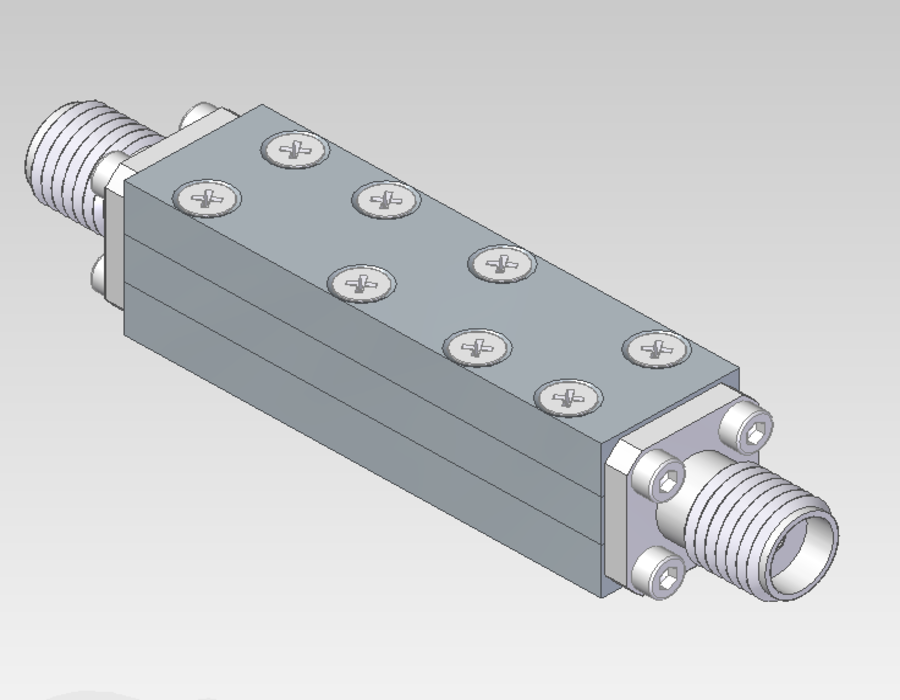

    This Mecanical Inter Digited Bandpass filter shows high-end performances in its 22700 MHz to 23500 MHz bandwidth. Indeed, it offers very low insertion losses < 1.5 dB and a VSWR < 1.5:1. Futhermore, it has a strong rejection of 60 dB from DC to 21000 MHz and of 60 dB starting from 25000 MHz. Moreover, it can cope with an average input power up to 2 W CW in a small volume of 35 x 10 x 10 mm ( 1.38 x 0.39 x 0.39 Inch(es)).

    Stock: 0
    Add to compareRequest quotation

    Additional Information

    Fmin (MHz)

    22700

    Fmax (MHz)

    23500

    Insertion Loss (dB)

    1.5

    VSWR

    1.5:1

    Rejection Frequency 01 (MHz)

    21000

    Rejection Value 01 (dB)

    60

    Rejection Frequency 02 (MHz)

    25000

    Rejection Value 02 (dB)

    60

    Power Handling (W)

    2

    Connectors

    SMA

    ROHS

    ROHS compliant against RoHS 10 substances (2015/863/EU)

    Warranty

    3 years

    Product Description

    This band-pass filter (PN 011040) allows you to reduce parasitic frequency both before and after your frequency range of interest. Indeed, it can cut out signals ranging from DC to 21000 MHz with 60 dB of attenuation and starting from 25000 MHz with 60 dB of attenuation.
    Beside high values of rejection it doesn’t degrade your signal of interested within its bandwidth (22700 to 23500 MHz) because of its low insertion losses (1.5 dB max) and VSWR (1.5:1 max).
    Designed to be as small as possible (35 x 10 x 10 mm ( 1.38 x 0.39 x 0.39 Inch(es)). ) it can handle up to 2 W of average power, and is fitted with SMA connectors.
    This rugged design can operate on a large temperature range (-55° C to +125° C) while still matching all its specifications.
    Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
