Dimensions: 50.8 x 29 x 25.4 mm ( 2 x 1.14 x 1 Inch(es)).

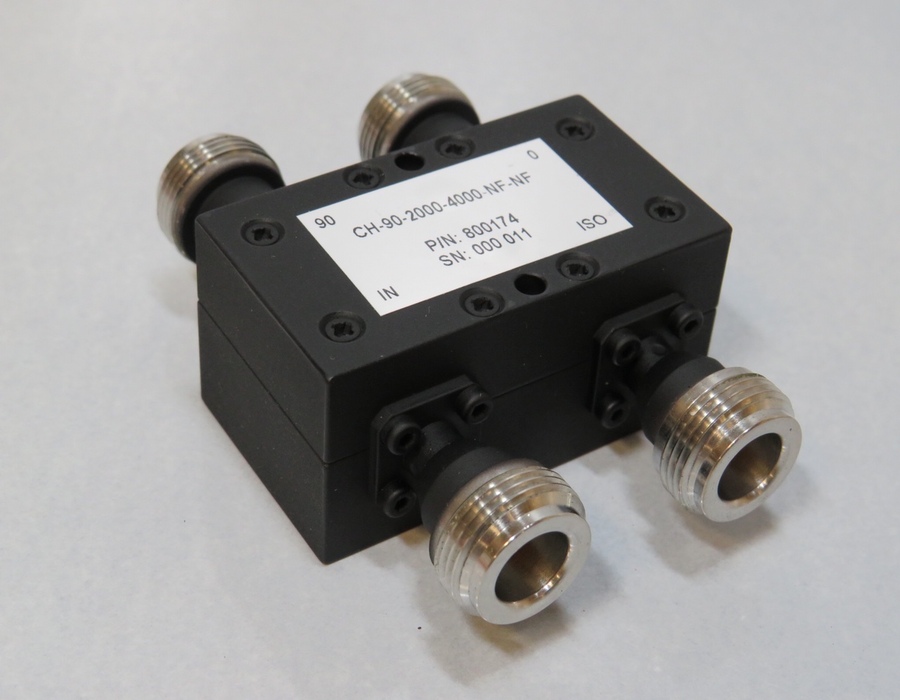

90° Hybrid Coupler 2000 – 4000 MHz – 400 W
CH-90-2000-4000-400-NF
Part number: 800174
This 90° 3dB hybrid coupler covers the range 2000 – 4000 MHz and provides a great isolation > 20 dB. With only 0,5 dB of insertion loss, this product offers a good VSWR < 1.25:1 on its main line and can handle up to 400 W of power.
lead time:
8-10 weeks
?Stock: 1
Additional Information
| Fmin (MHz) | 2000 |
|---|---|
| Fmax (MHz) | 4000 |
| Coupling (dB) | 3 |
| Coupling value tolerance (dB) | 0.5 |
| Phase (°) | 90 |
| Insertion Losses (dB) | 0.5 |
| Amplitude Balance (dB) | 0.5 |
| Phase Balance (°) | 5 |
| VSWR (Main line) | 1.25:1 |
| VSWR (Coupling Line) | 1.25:1 |
| Isolation (dB) | 20 |
| Power Handling (W) | 400 |
| Peak Power (kW) | 1.6 |
| Connectors (Main Line) | N |
| Connectors (Coupling Line) | N |
| Weight (g) | 160 |
| ROHS | ROHS compliant against RoHS 10 substances (2015/863/EU) |
| Warranty | 3 years |
Product Description
This 90° Hybrid Coupler 800174 allows you to split a 2000 to 4000 MHz input signal into two output signals with a 90° phase shift. Also kown as a quadrature coupler, it shows very low insertion losses < 0,5 dB, vswr < 1.25:1 and phase/ amplitude balance (5° / 0,5 dB) while keep a strong 20 dB of isolation. This coupler is ROHS compliant. Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
Please feel free to ask if you need any customisation or answers to your questions about this product.
