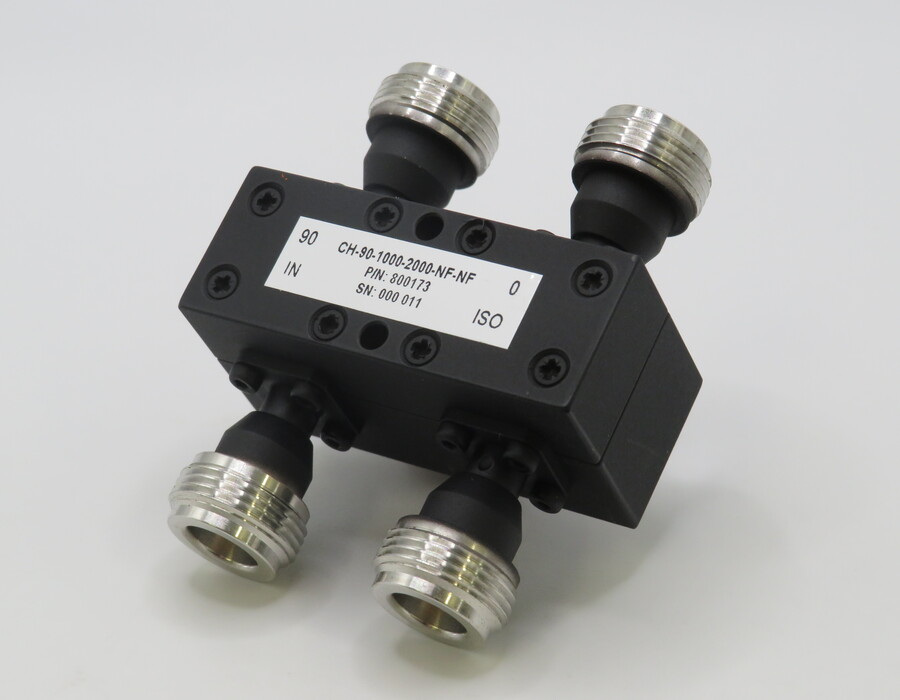

    90° Hybrid Coupler 1000 – 2000 MHz – 400 W

    CH-90-1000-2000-400-NF
    Part number: 800173

    580,00

    This 90° 3dB hybrid coupler covers the range 1000 – 2000 MHz and provides a great isolation > 20 dB. With only 0,5 dB of insertion loss, this product offers a good VSWR < 1.25:1 on its main line and can handle up to 400 W of power.

    lead time:
    8-10 weeks
    ?
    Stock: 1

    In stock

    ?

    Add to compare

    Additional Information

    Fmin (MHz)

    1000

    Fmax (MHz)

    2000

    Coupling (dB)

    3

    Coupling value tolerance (dB)

    0.5

    Phase (°)

    90

    Insertion Losses (dB)

    0.5

    Amplitude Balance (dB)

    0.5

    Phase Balance (°)

    5

    VSWR (Main line)

    1.25:1

    VSWR (Coupling Line)

    1.25:1

    Isolation (dB)

    20

    Power Handling (W)

    400

    Peak Power (kW)

    1.6

    Connectors (Main Line)

    N

    Connectors (Coupling Line)

    N

    Weight (g)

    130

    ROHS

    ROHS compliant against RoHS 10 substances (2015/863/EU)

    Warranty

    3 years

    Product Description

    This 90° Hybrid Coupler 800173 allows you to split a 1000 to 2000 MHz input signal into two output signals with a 90° phase shift. Also kown as a quadrature coupler, it shows very low insertion losses < 0,5 dB, vswr < 1.25:1 and phase/ amplitude balance (5° / 0,5 dB) while keep a strong 20 dB of isolation. This coupler is ROHS compliant. Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.

    Please feel free to ask if you need any customisation or answers to your questions about this product.
