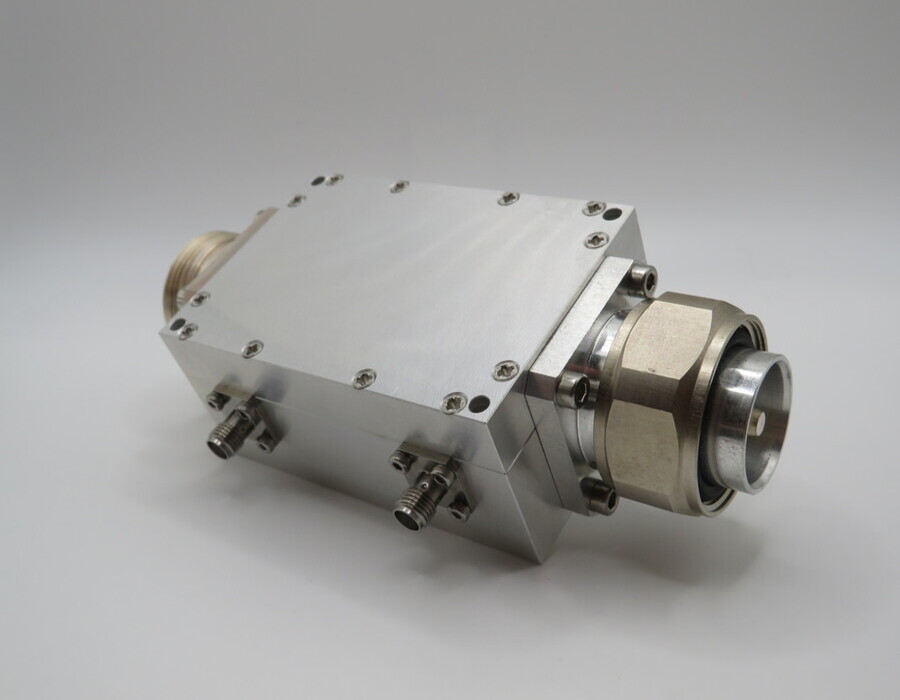

    800-2500 MHz Dual Directional Coupler – 30 dB – 500 W

    CD-2-800-2500-30-30-500-716M-716F-SF
    Part number: 800045

    1250,00

    This 30 dB low loss high power directional coupler covers the range 800-2500 MHz and provides a great directivity > 20 dB. With only 0,2 dB of insertion loss, this product offers a good VSWR < 1.4:1 and can handle up to 500 W.

    Stock: 1

    In stock

    ?

    Add to compare

    Additional Information

    Fmin (MHz)

    800

    Fmax (MHz)

    2500

    Coupling (dB)

    30

    Coupling value tolerance (dB)

    3

    Directivity (dB)

    20

    Insertion Losses (dB)

    0.2

    VSWR (Main line)

    1.4:1

    VSWR (Coupling Line)

    1.4:1

    Power Handling (W)

    500

    Peak Power (kW)

    10

    Connectors (Main Line)

    7/16

    Connector (Main Line)

    42552

    Connectors (Coupling Line)

    SMA

    Weight (g)

    460

    Warranty

    3 years

    Product Description

    This Coaxial Coupler 800045 allows you to sample 30 dB of any of your signals ranging 800 to 2500 MHz and with a continuous power < 500 W CW. Please note that this product can also deal with very high peak power up to 10 kW. Thanks to its low insertion losses < 0,2 dB (excluding coupling losses) and VSWR ( < 1.4:1 on main line and 1.4:1 on the coupled line), this product does not disrupt the signal you want to sample. Furthermore it provides a good directivity > 20 dB which is related to the isolation between input port and coupling port.

    Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.

    Please feel free to ask if you need any customisation or answers to your questions about this product.
