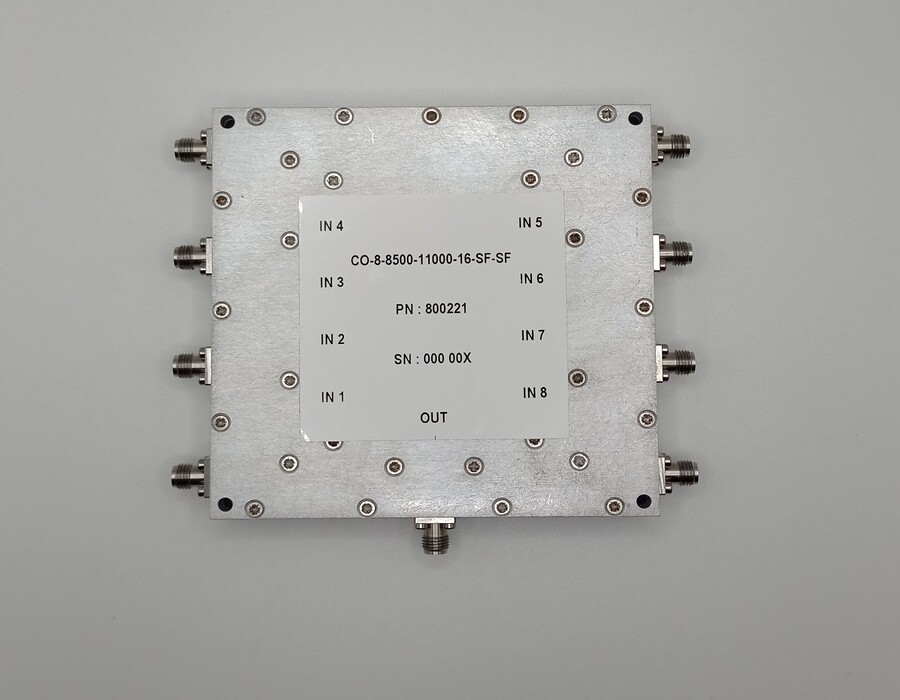

    8-Way 8500 – 11000 MHz Power Combiner – 16 W

    CO-8-8500-11000-16-SF-SF
    Part number: 800221

    This 8-way Gysel power combiner covers the 8500-11000 MHz frequency range, and can output up to 16 W of continuous power. This device shows a great VSWR <1.8:1 and a high isolation of 16 dB. This product can handle any combinations of phases and amplitudes on its 8 inputs. As all our products it is made in-house and comes a 3 years warranty.

    Stock: 4
    Add to compareRequest quotation

    Additional Information

    Ways

    8

    Fmin (MHz)

    8500

    Fmax (MHz)

    11000

    Insertion losses (dB)

    1.4

    Input VSWR

    1.8:1

    Output VSWR

    1.8:1

    Isolation (dB)

    16

    Amplitude Balance (dB)

    -/+ 0.5

    Phase Balance (°)

    6

    Power Handling (W)

    16

    Input Connectors

    SMA

    Output Connector

    SMA

    ROHS

    ROHS compliant against RoHS 10 substances (2015/863/EU)

    Warranty

    3 years

    Product Description

    This Gysel power combiner (Part number: 800221) allows you to merge 8 in-phase signals into 1 on the 8500 – 11000 MHz frequency range. It can output up to 16 W CW on a large operating temperature range of +10°C to +85°C. Furthermore it allows you to get the best out of your sources by having a low VSWR(<1.8:1), and low insertion losses(<1.4dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (16 dB min) in order to prevent your sources from damaging one another. Moreover as a Gysel Power Combiner it can also be used as a power splitter with the same specifications.
