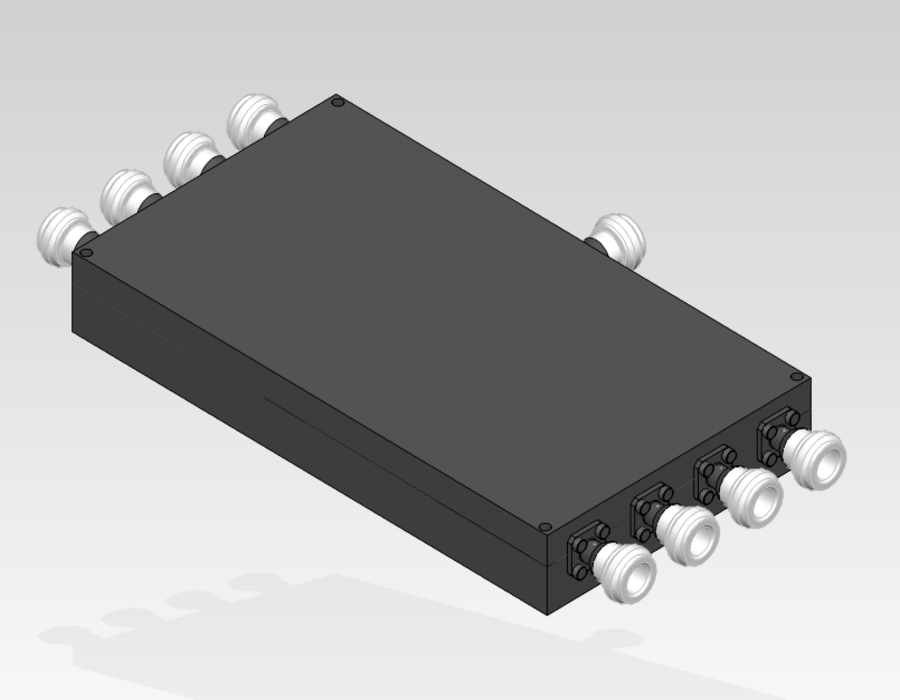

    8-Way 5500 – 6000 MHz Power Combiner – 400 W

    CO-8-5500-6000-400-NF-NF
    Part number: 011139

    This 8-way Gysel power combiner covers the 5500-6000 MHz frequency range, and can output up to 400 W of continuous power. This device shows a great VSWR <1.5:1 and a high isolation of 18 dB. As all our products it is made in-house and comes a 3 years warranty.

    Stock: 0
    Add to compareRequest quotation

    Additional Information

    Ways

    8

    Fmin (MHz)

    5500

    Fmax (MHz)

    6000

    Insertion losses (dB)

    1

    Input VSWR

    1.5:1

    Output VSWR

    1.5:1

    Isolation (dB)

    18

    Amplitude Balance (dB)

    -/+0.5

    Phase Balance (°)

    5

    Power Handling (W)

    400

    Input Connectors

    N

    Output Connector

    N

    Warranty

    3 years

    Peak Power (kW)

    4

    Product Description

    This Gysel power combiner (Part number: 011139) allows you to merge 8 in-phase signals into 1 on the 5500 – 6000 MHz frequency range. It can output up to 400 W CW on a large operating temperature range of -40°C to +55°C. Furthermore it allows you to get the best out of your sources by having a low VSWR(<1.5:1), and low insertion losses(<1dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (18 dB min) in order to prevent your sources from damaging one another. Moreover as a Gysel Power Combiner it can also be used as a power splitter with the same specifications.
