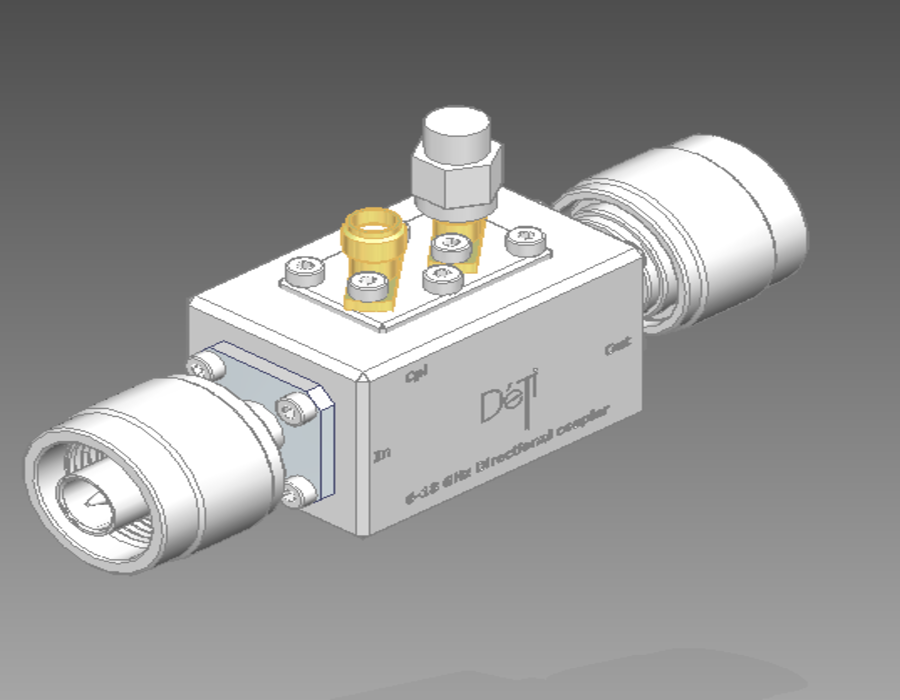

    6000-18000 MHz Directional Coupler – 30 dB – 200 W

    CD-1-6000-18000-30-200-NM-NM-SF
    Part number: 011079

    This 30 dB low loss high power directional coupler covers the range 6000-18000 MHz and provides a great directivity > 20 dB. With only 0,3 dB of insertion loss, this product offers a good VSWR < 1.6:1 and can handle up to 200 W.

    Stock: 0
    Add to compareRequest quotation

    Additional Information

    Fmin (MHz)

    6000

    Fmax (MHz)

    18000

    Coupling (dB)

    30

    Coupling value tolerance (dB)

    1

    Directivity (dB)

    20

    Insertion Losses (dB)

    0.3

    VSWR (Main line)

    1.5:1

    VSWR (Coupling Line)

    1.6:1

    Power Handling (W)

    200

    Peak Power (kW)

    2

    Connectors (Main Line)

    N

    Connectors (Coupling Line)

    SMA

    Warranty

    3 years

    Product Description

    This Coaxial Coupler 011079 allows you to sample 30 dB of any of your signals ranging 6000 to 18000 MHz and with a continuous power < 200 W CW. Please note that this product can also deal with very high peak power up to 2 kW. Thanks to its low insertion losses < 0,3 dB (excluding coupling losses) and VSWR ( < 1.5:1 on main line and 1.6:1 on the coupled line), this product does not disrupt the signal you want to sample. Furthermore it provides a good directivity > 20 dB which is related to the isolation between input port and coupling port.

    Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.

    Please feel free to ask if you need any customisation or answers to your questions about this product.
