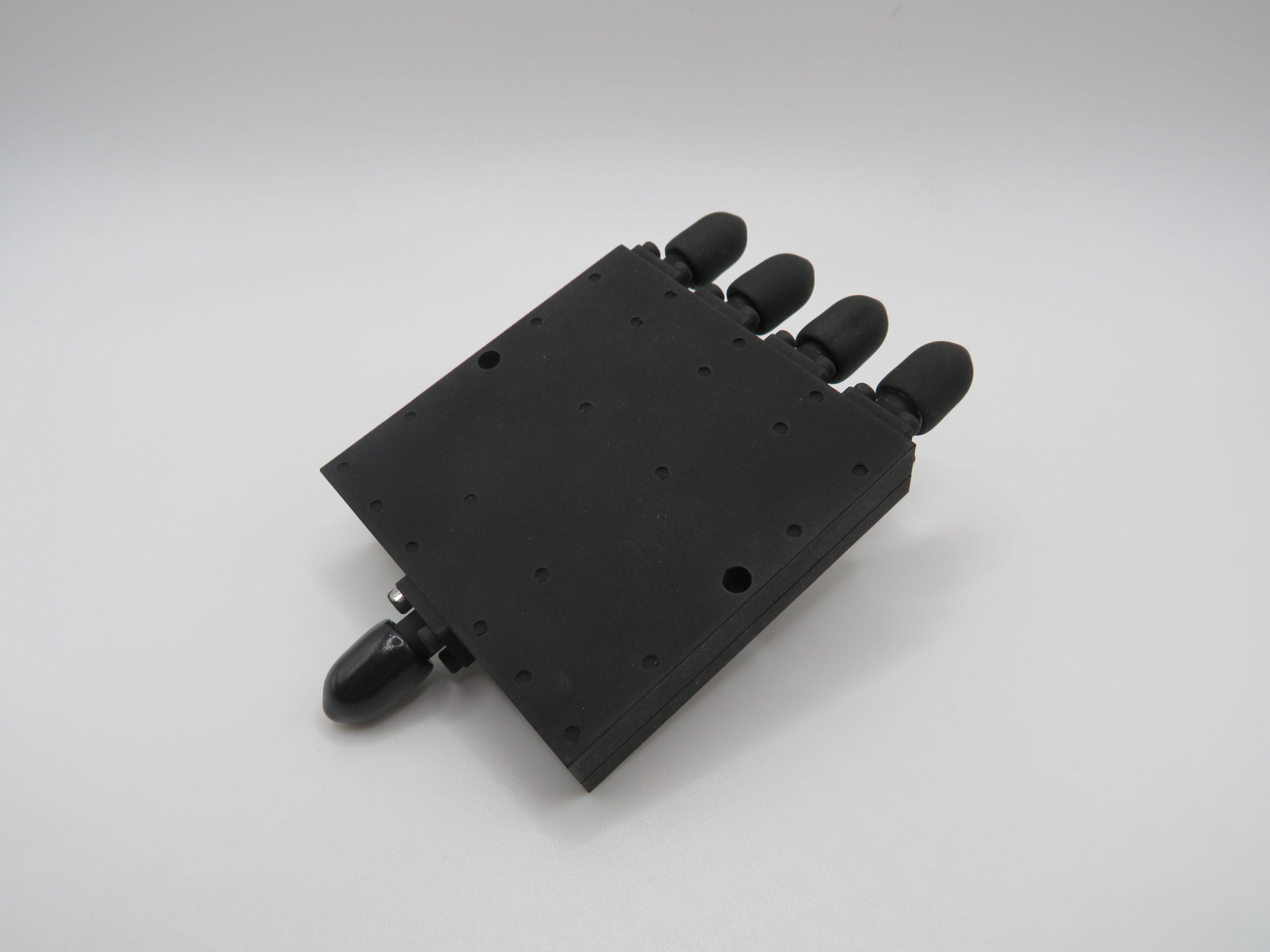

This 4-Way power divider, based on a Wilkinson stripline technology covers a frequency band from 8000 up to 12000 MHz.
Compact and robust it offers an excellent isolation and low insertion losses. For both commercial and military applications, this product is MIL-STD-202 compliant.
|Power Handling (W)|
ROHS compliant against ROHS 10 substances (2015/863/EU)
This 4-Way power divider 011273 covers a frequency band from 8000 up to 12000 MHz. Compact and robust thanks to its Wilkinson stripline technology, it offers insertion losses of 0.6 dB, a amplitude balance of 0.3 dB, a phase balance of 6 degrees, an isolation of 17 dB and a VSWR of 1.5:1.
The power handling is 30 W average on the input port when output ports are loaded with VSWR better then 1.20:1. The operating temperature covers a range from -40°C up to +85°C. The storage temperature range is -55°C to +125°C.
This product handles mechanical shocks in compliance with MIL-STD-202: Method 213 – Test condition C (100g 6ms ½), Sinus vibrations in compliance with MIL-STD-202: Method 204D – Test condition A (10g / 10-2000Hz), Thermal shocks in compliance with MIL-STD-202: Method 107G – Test condition A (-40°C/+85°C) and humidity in compliance with MIL-STD-202: Method 103 – Test condition B (95% 96H).
