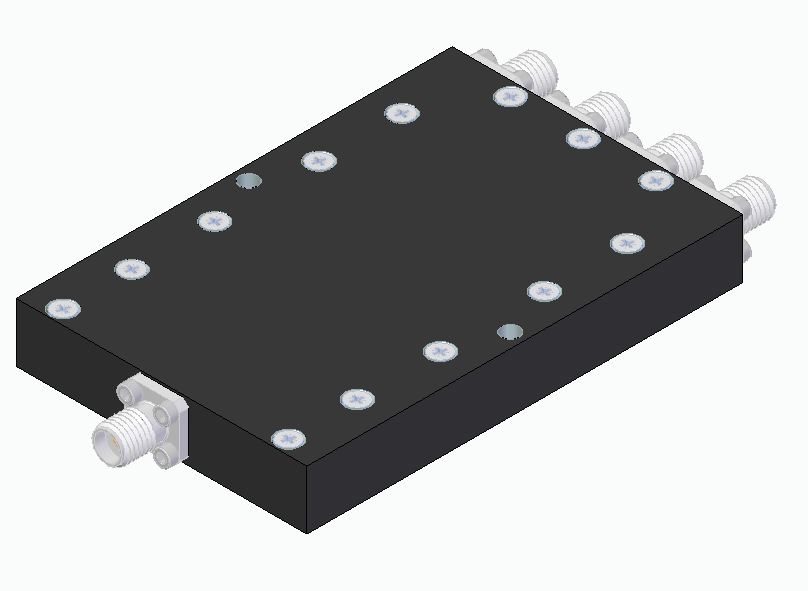

    4-Way Power Divider 3.2-6.2 GHz

    DI-4-3200-6200-30-SF-SF
    Part number: 011214

    441,00

    This 4-Way power divider, based on a Wilkinson stripline technology covers a frequency band from 3200 up to 6200 MHz.
    Compact and robust it offers an excellent isolation and low insertion losses. For both commercial and military applications, this product is MIL-STD-202 compliant.

    lead time:
    8-10 weeks
    ?
    Stock: 0

    ?

    Quantity Price
    1 - 4 441,00
    5 - 9 384,00
    10 - 24 303,00
    25 - 49 220,00
    50+ 195,00
    Prices do not include import duties that may apply out of Europe
    Add to compare

    Additional Information

    Ways

    4

    Fmin (MHz)

    3200

    Fmax (MHz)

    6200

    Insertion Loss(dB)

    0.9

    AmplitudeBalance(dB)

    0.4

    PhaseBalance(Degree)

    6

    Isolation(dB)

    20

    VSWR

    1.5:1

    Power Handling (W)

    30

    Connectors

    SMA

    ROHS Compliance

    ROHS compliant against ROHS 10 substances (2015/863/EU)

    MIL-STD

    MIL-STD-202 compliant

    Warranty

    3 years

    Product Description

    This 4-Way power divider 011214 covers a frequency band from 3200 up to 6200 MHz. Compact and robust thanks to its Wilkinson stripline technology, it offers insertion losses of 0.9 dB, a amplitude balance of 0.4 dB, a phase balance of 6 degrees, an isolation of 20 dB and a VSWR of 1.5:1.
    The power handling is 30 W average on the input port when output ports are loaded with VSWR better then 1.20:1. The operating temperature covers a range from -40°C up to +85°C. The storage temperature range is -55°C to +125°C.
    This product handles mechanical shocks in compliance with MIL-STD-202: Method 213 – Test condition C (100g 6ms ½), Sinus vibrations in compliance with MIL-STD-202: Method 204D – Test condition A (10g / 10-2000Hz), Thermal shocks in compliance with MIL-STD-202: Method 107G – Test condition A (-40°C/+85°C) and humidity in compliance with MIL-STD-202: Method 103 – Test condition B (95% 96H).
