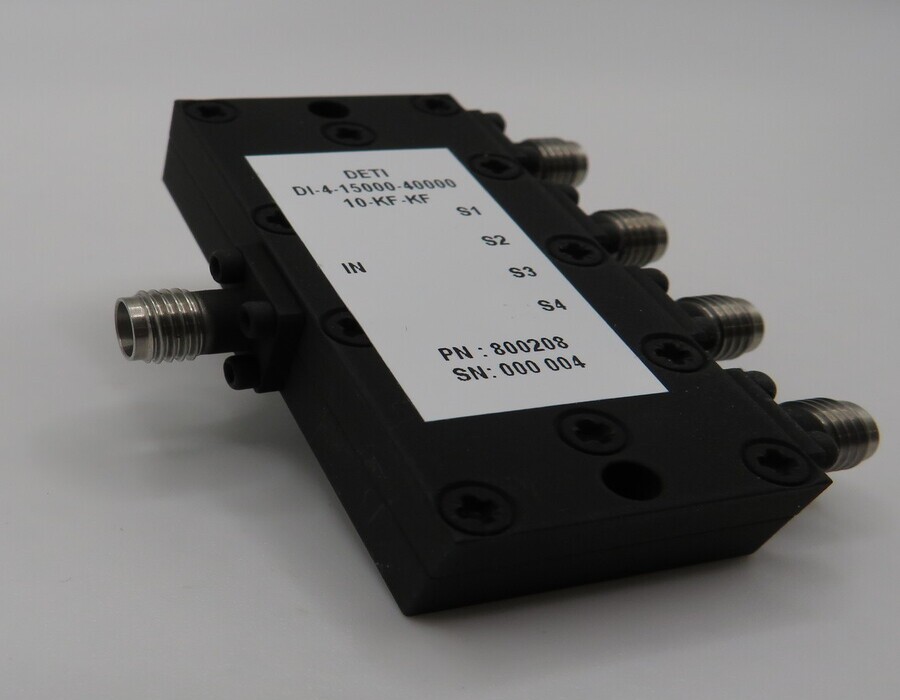

    4-Way Power Divider 15-40 GHz

    DI-4-15000-40000-10-KF-KF
    Part number: 800208

    838,00

    This 4-Way Wilkinson power divider, based on a Wilkinson stripline technology covers a frequency band from 15000 up to 40000 MHz.
    Compact and robust it offers an excellent isolation and low insertion losses. For both commercial and military applications, this product is MIL-STD-202 compliant.

    lead time:
    8-10 weeks
    ?
    Stock: 7

    In stock

    ?

    Quantity Price
    1 - 4 838,00
    5 - 9 728,00
    10 - 24 575,00
    25 - 49 547,00
    50+ 506,00
    Prices do not include import duties that may apply out of Europe
    Add to compare

    Additional Information

    Ways

    4

    Fmin (MHz)

    15000

    Fmax (MHz)

    40000

    Insertion Loss(dB)

    2

    AmplitudeBalance(dB)

    0.8

    PhaseBalance(Degree)

    12

    Isolation(dB)

    13

    VSWR

    1.9:1

    Power Handling (W)

    10

    Connectors

    K (2.92 mm)

    ROHS Compliance

    ROHS compliant against ROHS 10 substances (2015/863/EU)

    Warranty

    3 years

    Product Description

    This 4-Way power divider ( P/N: 800208 ) covers a frequency band from 15000 up to 40000 MHz. Compact and robust thanks to its Wilkinson stripline technology, it offers insertion losses of 2 dB, a amplitude balance of 0.8 dB, a phase balance of 12 degrees, an isolation of 13 dB and a VSWR of 1.9:1.
    The power handling is 10 W average on the input port when output ports are loaded with VSWR better then 1.20:1. The operating temperature covers a range from -40°C up to +85°C. The storage temperature range is -55°C to +125°C.
    This product handles mechanical shocks in compliance with MIL-STD-202: Method 213 – Test condition C (100g 6ms ½), Sinus vibrations in compliance with MIL-STD-202: Method 204D – Test condition A (10g / 10-2000Hz), Thermal shocks in compliance with MIL-STD-202: Method 107G – Test condition A (-40°C/+85°C) and humidity in compliance with MIL-STD-202: Method 103 – Test condition B (95% 96H).
