Dimensions: 209 x 169 x 68 mm ( 8.23 x 6.65 x 2.68 Inch(es)).

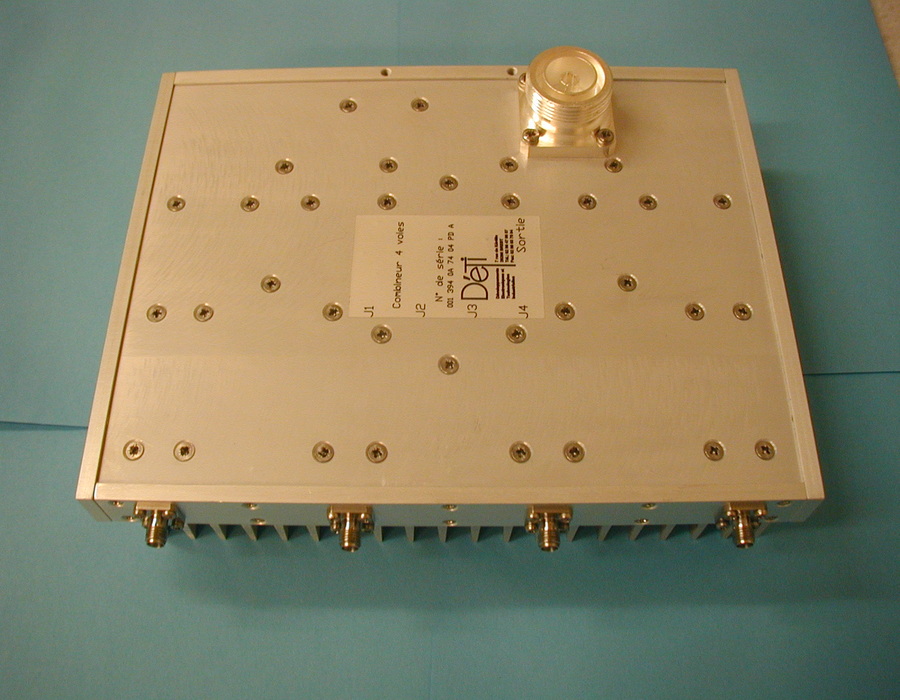

4-Way 1450 – 1500 MHz Power Combiner – 400 W
CO-4-1450-1500-100-SF-716F
Part number: 001394This 4-way Gysel power combiner covers the 1450-1500 MHz frequency range, and can output up to 400 W of continuous power. This device shows a great VSWR <1.2:1 and a high isolation of 23 dB. As all our products it is made in-house and comes a 3 years warranty.
Stock: 0
Additional Information
| Ways | 4 |
|---|---|
| Fmin (MHz) | 1450 |
| Fmax (MHz) | 1500 |
| Insertion losses (dB) | 0.4 |
| Input VSWR | 1.2:1 |
| Output VSWR | 1.2:1 |
| Isolation (dB) | 23 |
| Amplitude Balance (dB) | -/+ 0.3 |
| Phase Balance (°) | 7 |
| Power Handling (W) | 400 |
| Input Connectors | SMA |
| Output Connector | 7/16 |
| Warranty | 3 years |
Product Description
This Gysel power combiner (Part number: 001394) allows you to merge 4 in-phase signals into 1 on the 1450 – 1500 MHz frequency range. It can output up to 400 W CW on a large operating temperature range of -10°C to +50°C. Furthermore it allows you to get the best out of your sources by having a low VSWR(<1.2:1), and low insertion losses(<0.4dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (23 dB min) in order to prevent your sources from damaging one another. Moreover as a Gysel Power Combiner it can also be used as a power splitter with the same specifications.
