Dimensions: 436 x 670 x 145 mm ( 17.17 x 26.38 x 5.7 Inch(es)).

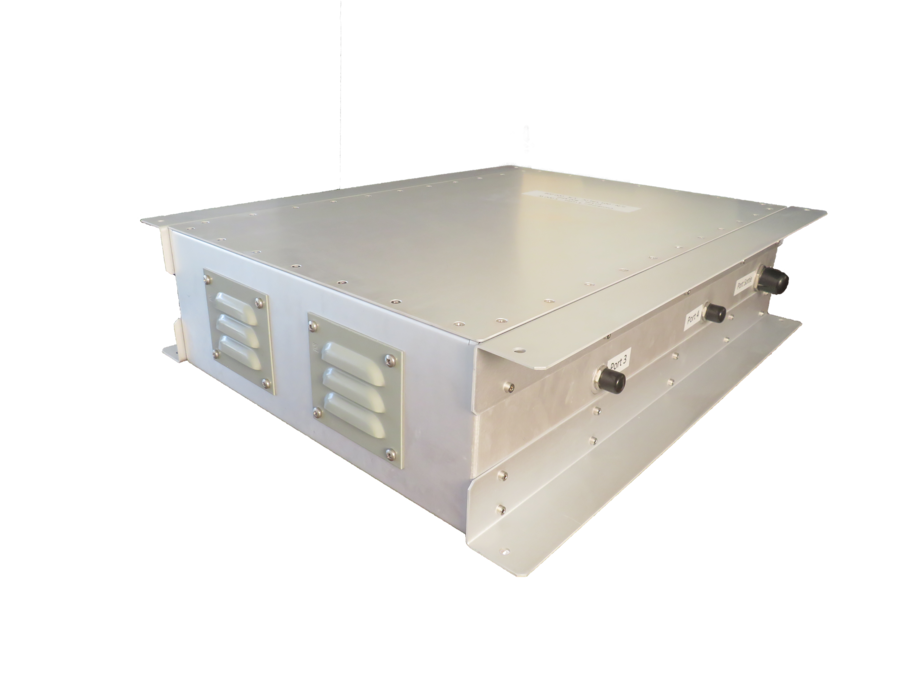

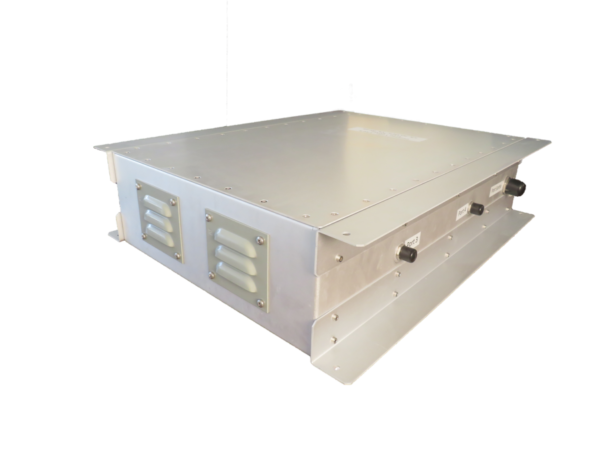

4-Way 100 kHz – 200 MHz Power Combiner – 6000 W
CO-4-0.1-200-4000-NF-716F
Part number: 800303This Toroidal Magnetic Core Power Combiner covers the 100 kHz-200 MHz frequency range, and can output up to 6000 W of continuous power. This device shows a great VSWR <1.3:1 and a high isolation of 15 dB. As all our products it is made in-house and comes a 3 years warranty.
Stock: 0
Additional Information
| Ways | 4 |
|---|---|
| Fmin (MHz) | 0.1 |
| Fmax (MHz) | 200 |
| Insertion losses (dB) | 0.5 |
| Input VSWR | 1.3:1 |
| Output VSWR | 1.3:1 |
| Isolation (dB) | 15 |
| Amplitude Balance (dB) | -/+ 0.1 |
| Phase Balance (°) | 5 |
| Power Handling (W) | 6000 |
| Input Connectors | N |
| Output Connector | 7/16 |
| Weight (g) | 25000 |
| Warranty | 3 years |
Product Description
This power combiner (PN 800303) allows you to merge 4 in-phase signals into 1 on the 100 kHz – 200 MHz frequency range. It can output up to 6000 W CW on a large operating temperature range of 0°C to +50°C. Furthermore it allows you to get the best out of your sources by having a low VSWR(<1.3:1), and low insertion losses(<0.5dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (15 dB min) in order to prevent your sources from damaging one another. Moreover as a Magnetic Core Power Combiner it can also be used as a power splitter with the same specifications.
