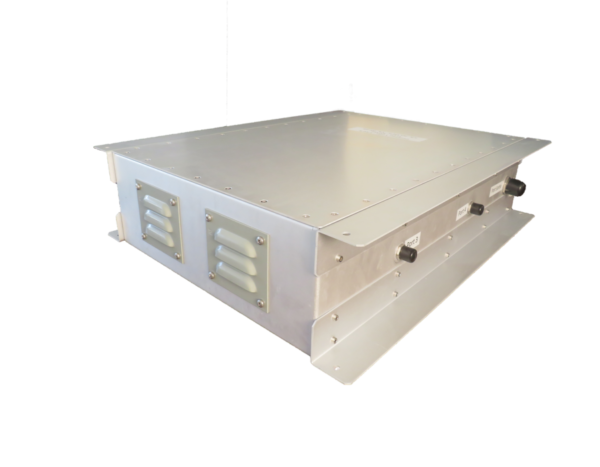

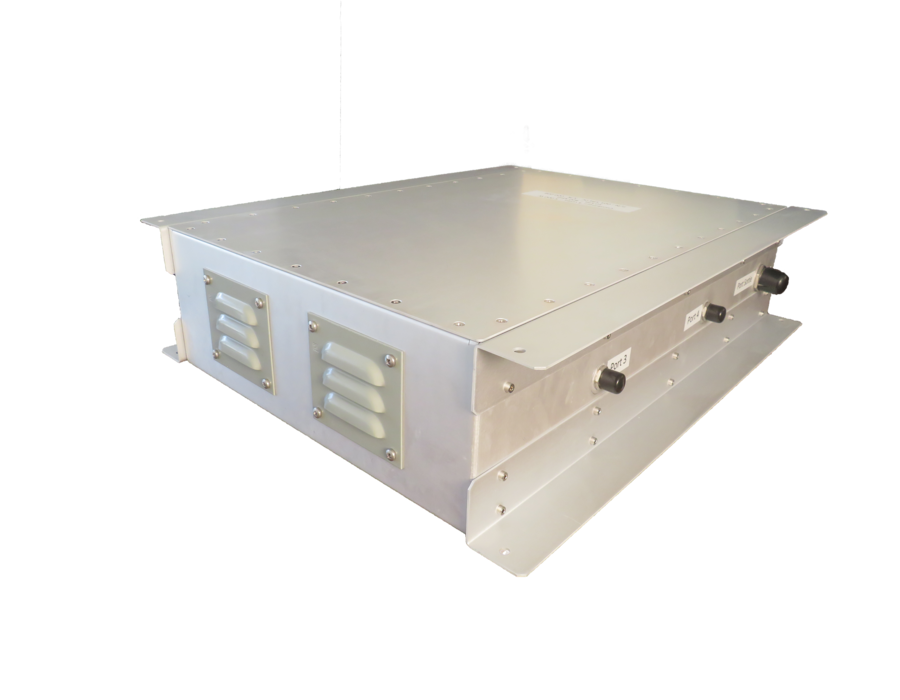

    4-Way 10 kHz – 400 MHz Power Combiner – 6000 W

    CO-4-0.01-400-6000-NF-716F
    Part number: 800195

    This Toroidal Magnetic Core Power Combiner covers the 10 kHz-400 MHz frequency range, and can output up to 6000 W of continuous power. This device shows a great VSWR <1.4:1 and a high isolation of 15 dB. As all our products it is made in-house and comes a 3 years warranty.

    Stock: 0
    Add to compareRequest quotation

    Additional Information

    Ways

    4

    Fmin (MHz)

    0.01

    Fmax (MHz)

    400

    Insertion losses (dB)

    1.2

    Input VSWR

    1.4:1

    Output VSWR

    1.4:1

    Isolation (dB)

    15

    Amplitude Balance (dB)

    -/+ 0.15

    Phase Balance (°)

    8

    Power Handling (W)

    6000

    Input Connectors

    N

    Output Connector

    7/16

    Weight (g)

    31000

    Warranty

    3 years

    Product Description

    This power combiner (PN 800195) allows you to merge 4 in-phase signals into 1 on the 10 kHz – 400 MHz frequency range. It can output up to 6000 W CW on a large operating temperature range of 0°C to +50°C. Furthermore it allows you to get the best out of your sources by having a low VSWR(<1.4:1), and low insertion losses(<1.2dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (15 dB min) in order to prevent your sources from damaging one another. Moreover as a Magnetic Core Power Combiner it can also be used as a power splitter with the same specifications.
