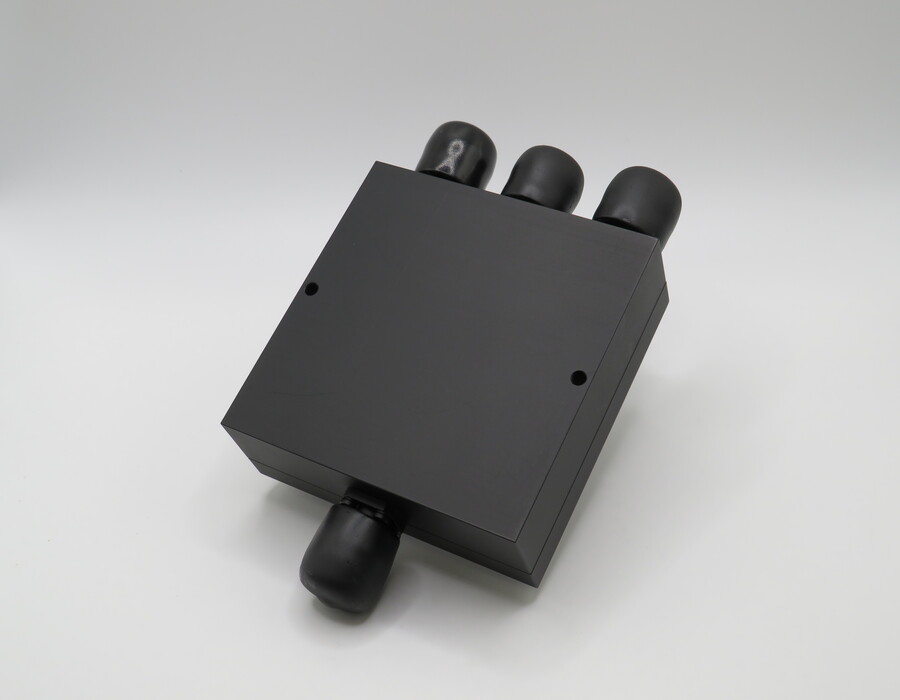

    3-Way 1700 – 2100 MHz Power Combiner – 600 W

    CO-3-1700-2100-600-NF-NF
    Part number: 001678

    1550,00

    This 3-way Wilkinson power combiner covers the 1700-2100 MHz frequency range, and can output up to 600 W of continuous power. This device shows a great VSWR <1.3:1 and a high isolation of 18 dB. As all our products it is made in-house and comes a 3 years warranty.

    Stock: 1

    In stock

    ?

    Add to compare

    Additional Information

    Ways

    3

    Fmin (MHz)

    1700

    Fmax (MHz)

    2100

    Insertion losses (dB)

    0.65

    Input VSWR

    1.3:1

    Output VSWR

    1.3:1

    Isolation (dB)

    18

    Amplitude Balance (dB)

    -/+ 0.25

    Phase Balance (°)

    5

    Power Handling (W)

    600

    Input Connectors

    N

    Output Connector

    N

    ROHS

    ROHS compliant against RoHS 10 substances (2015/863/EU)

    Warranty

    3 years

    Product Description

    This power combiner (Part number: 001678) allows you to merge 3 in-phase signals into 1 on the 1700 – 2100 MHz frequency range. It can output up to 600 W CW on a large operating temperature range of -40°C to +50°C. Furthermore it allows you to get the best out of your sources by having a low VSWR(<1.3:1), and low insertion losses(<0.65dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (18 dB min) in order to prevent your sources from damaging one another. Moreover as a Wilkinson Power Combiner it can also be used as a power splitter with the same specifications.
