    24000-28000 MHz Directional Coupler – 10 dB – 5 W

    CD-1-24000-28000-10-5-KF-KF-KF
    Part number: 011059

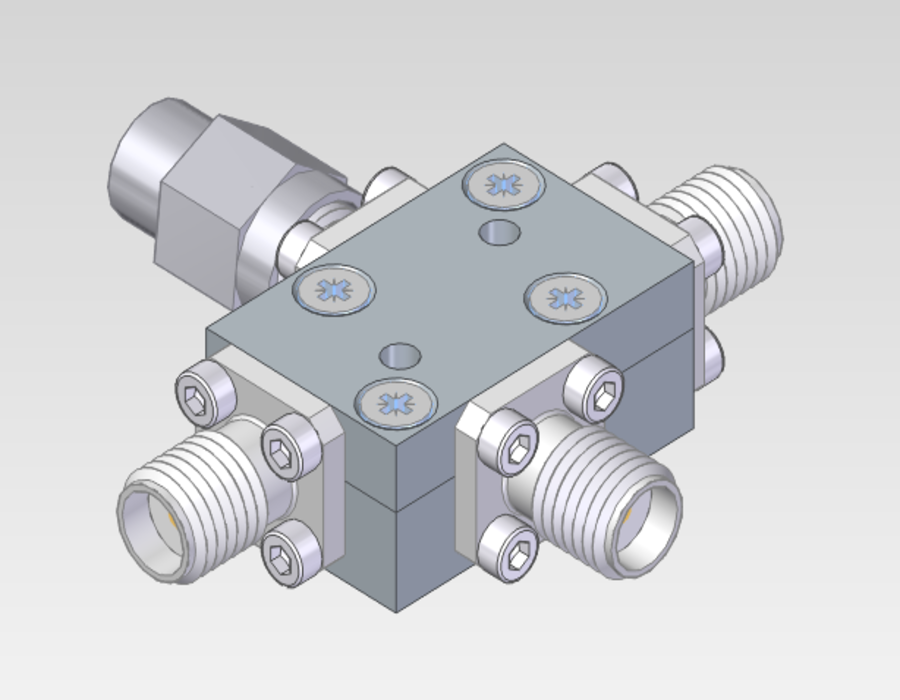

    This 10 dB stripline directional coupler covers the range 24000-28000 MHz and provides a great directivity > 18 dB. With only 0,75 dB of insertion loss, this product offers a good VSWR < 1.5:1 and can handle up to 5 W.

    lead time:
    8-10 weeks
    ?
    Stock: 0
    Add to compareRequest quotation

    Additional Information

    Fmin (MHz)

    24000

    Fmax (MHz)

    28000

    Coupling (dB)

    10

    Coupling value tolerance

    1

    Directivity (dB)

    18

    Insertion Losses (dB)

    0.75

    VSWR (Main line)

    1.5:1

    VSWR (Coupling Line)

    1.5:1

    Power Handling (W)

    5

    Connectors (Main Line)

    K (2.92 mm)

    Connectors (Coupling Line)

    K (2.92 mm)

    ROHS

    ROHS compliant against RoHS 10 substances (2015/863/EU)

    Warranty

    3 years

    Product Description

    This Stripline Coupler 011059 allows you to sample 10 dB of any of your signals ranging 24000 to 28000 MHz and with a continuous power < 5 W. Thanks to its low insertion losses < 0,75 dB (excluding coupling losses) and VSWR ( < 1.5:1 on main line and 1.5:1 on the coupled line), this product does not disrupt the signal you want to sample. Furthermore it provides a good directivity > 18 dB which is related to the isolation between input port and coupling port.

    Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.

    Please feel free to ask if you need any customisation or answers to your questions about this product.
