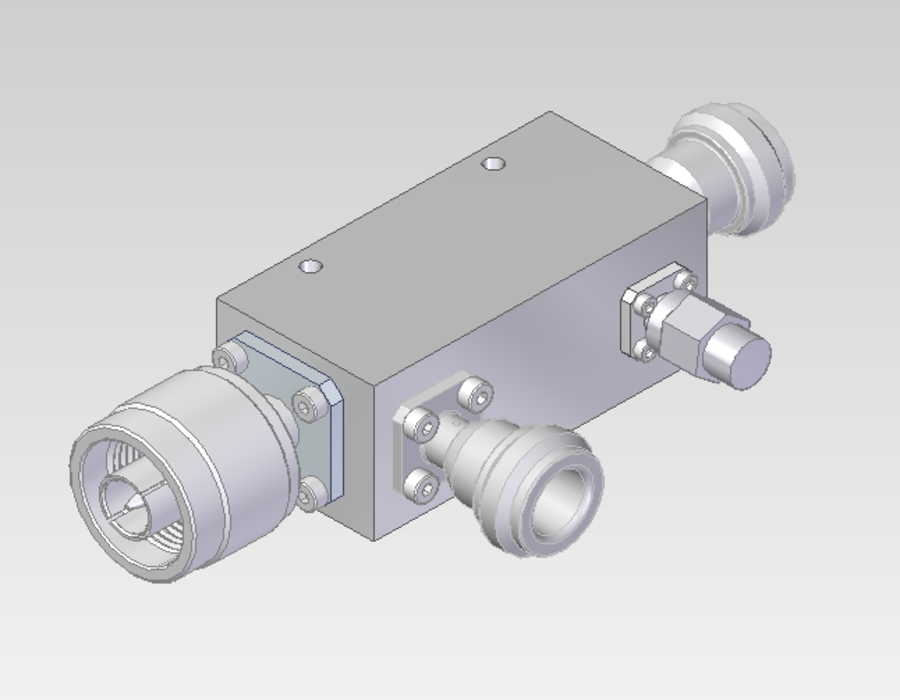

    2200-2300 MHz Directional Coupler – 30 dB – 50 W

    CD-1-2200-2300-30-50-NM-NF-NF
    Part number: 011063

    This 30 dB stripline directional coupler covers the range 2200-2300 MHz and provides a great directivity > 18 dB. With only 0,2 dB of insertion loss, this product offers a good VSWR < 1.25:1 and can handle up to 50 W.

    lead time:
    8-10 weeks
    ?
    Stock: 0
    Add to compareRequest quotation

    Additional Information

    Fmin (MHz)

    2200

    Fmax (MHz)

    2300

    Coupling (dB)

    30

    Coupling value tolerance

    1

    Directivity (dB)

    18

    Insertion Losses (dB)

    0.2

    VSWR (Main line)

    1.25:1

    VSWR (Coupling Line)

    1.25:1

    Power Handling (W)

    50

    Connectors (Main Line)

    N

    Connectors (Coupling Line)

    N

    Weight (g)

    130

    ROHS

    ROHS compliant against RoHS 10 substances (2015/863/EU)

    Warranty

    3 years

    Product Description

    This Stripline Coupler 011063 allows you to sample 30 dB of any of your signals ranging 2200 to 2300 MHz and with a continuous power < 50 W. Thanks to its low insertion losses < 0,2 dB (excluding coupling losses) and VSWR ( < 1.25:1 on main line and 1.25:1 on the coupled line), this product does not disrupt the signal you want to sample. Furthermore it provides a good directivity > 18 dB which is related to the isolation between input port and coupling port.

    Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.

    Please feel free to ask if you need any customisation or answers to your questions about this product.
