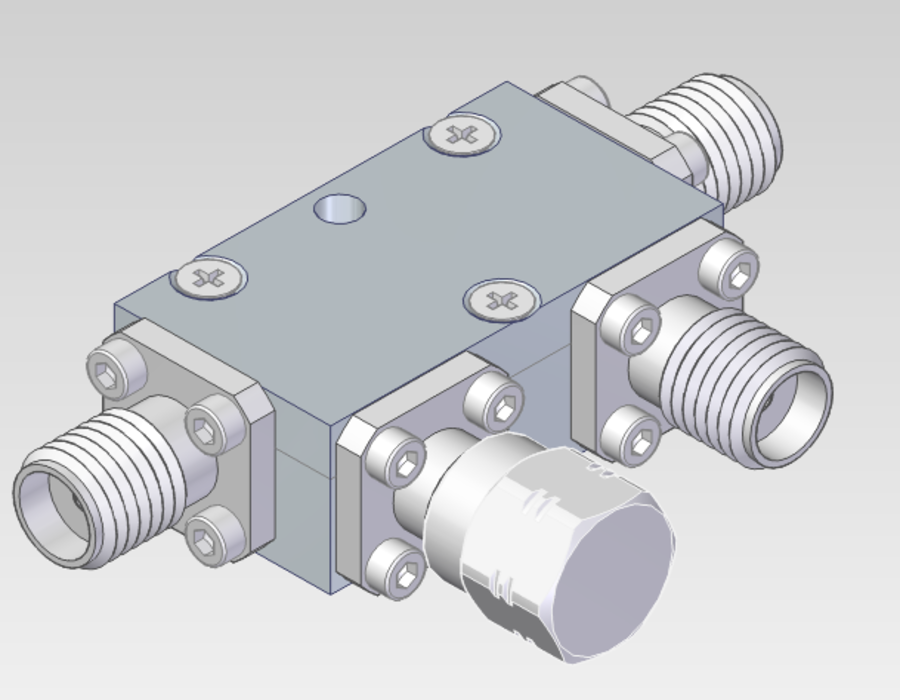

This 10 dB stripline directional coupler covers the range 2000-8000 MHz and provides a great directivity > 20 dB. With only 0,5 dB of insertion loss, this product offers a good VSWR < 1.2:1 and can handle up to 50 W.
|Coupling value tolerance|
|Insertion Losses (dB)|
|VSWR (Main line)|
|VSWR (Coupling Line)|
|Coupling Flatness (dB)|
|Power Handling (W)|
|Connectors (Main Line)|
|Connectors (Coupling Line)|
ROHS compliant against RoHS 10 substances (2015/863/EU)
This Stripline Coupler 011266 allows you to sample 10 dB of any of your signals ranging 2000 to 8000 MHz and with a continuous power < 50 W. Thanks to its low insertion losses < 0,5 dB (excluding coupling losses) and VSWR ( < 1.2:1 on main line and 1.2:1 on the coupled line), this product does not disrupt the signal you want to sample. Furthermore it provides a good directivity > 20 dB which is related to the isolation between input port and coupling port.
Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
Please feel free to ask if you need any customisation or answers to your questions about this product.
