Dimensions: 68 x 54 x 22.2 mm ( 2.68 x 2.13 x 0.87 Inch(es)).
2000-4000 MHz Directional Coupler – 30 dB – 200 W
CD-1-2000-4000-30-200-NF-NF-NF

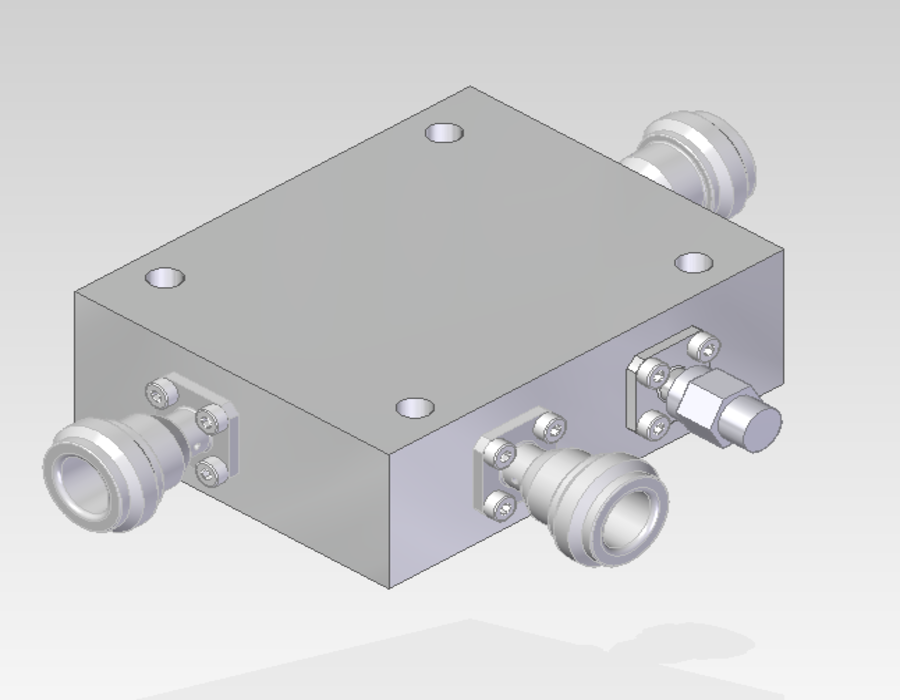

Part number: 011086This 30 dB low loss high power directional coupler covers the range 2000-4000 MHz and provides a great directivity > 27 dB. With only 0,2 dB of insertion loss, this product offers a good VSWR < 1.2:1 and can handle up to 200 W.
Stock: 0
Additional Information
| Fmin (MHz) | 2000 |
|---|---|
| Fmax (MHz) | 4000 |
| Coupling (dB) | 30 |
| Coupling value tolerance (dB) | 1 |
| Directivity (dB) | 27 |
| Insertion Losses (dB) | 0.2 |
| VSWR (Main line) | 1.15:1 |
| VSWR (Coupling Line) | 1.2:1 |
| Power Handling (W) | 200 |
| Connectors (Main Line) | N |
| Connectors (Coupling Line) | N |
| Warranty | 3 years |
Product Description
This Coaxial Coupler 011086 allows you to sample 30 dB of any of your signals ranging 2000 to 4000 MHz and with a continuous power < 200 W CW. Thanks to its low insertion losses < 0,2 dB (excluding coupling losses) and VSWR ( < 1.15:1 on main line and 1.2:1 on the coupled line), this product does not disrupt the signal you want to sample. Furthermore it provides a good directivity > 27 dB which is related to the isolation between input port and coupling port.
Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
Please feel free to ask if you need any customisation or answers to your questions about this product.
