    2000-18000 MHz Directional Coupler – 40 dB – 40 W

    CD-1-2000-18000-40-50-SF-SF-SF
    Part number: 011062

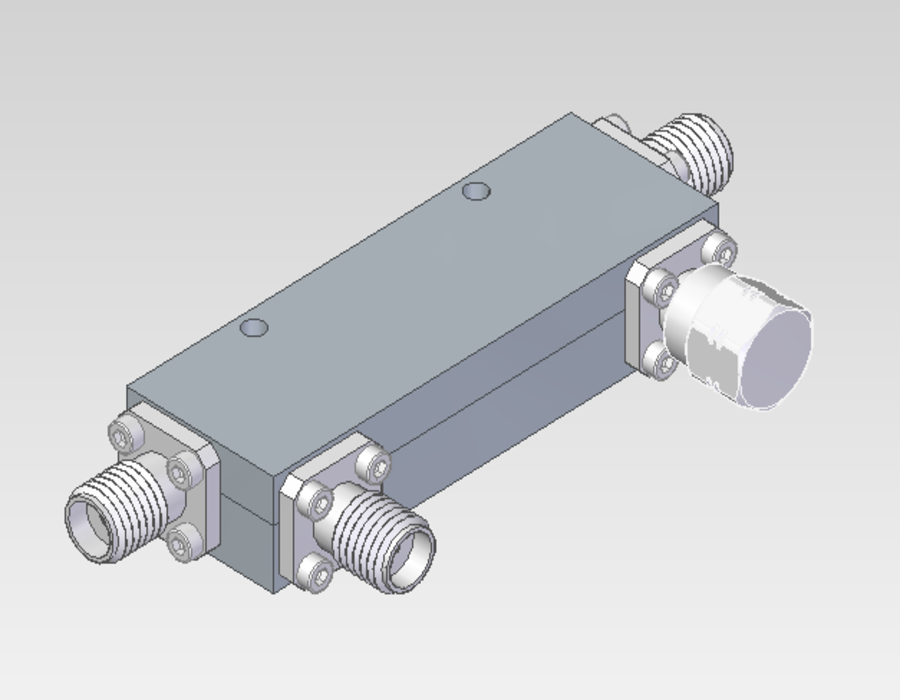

    This 40 dB stripline directional coupler covers the range 2000-18000 MHz and provides a great directivity > 15 dB. With only 0,5 dB of insertion loss, this product offers a good VSWR < 1.3:1 and can handle up to 40 W.

    lead time:
    8-10 weeks
    ?
    Stock: 0
    Add to compareRequest quotation

    Additional Information

    Fmin (MHz)

    2000

    Fmax (MHz)

    18000

    Coupling (dB)

    40

    Coupling value tolerance

    1

    Directivity (dB)

    15

    Insertion Losses (dB)

    0.5

    VSWR (Main line)

    1.3:1

    VSWR (Coupling Line)

    1.3:1

    Power Handling (W)

    40

    Peak Power (kW)

    0.4

    Connectors (Main Line)

    SMA

    Connectors (Coupling Line)

    SMA

    ROHS

    ROHS compliant against RoHS 10 substances (2015/863/EU)

    Warranty

    3 years

    Product Description

    This Stripline Coupler 011062 allows you to sample 40 dB of any of your signals ranging 2000 to 18000 MHz and with a continuous power < 40 W. Thanks to its low insertion losses < 0,5 dB (excluding coupling losses) and VSWR ( < 1.3:1 on main line and 1.3:1 on the coupled line), this product does not disrupt the signal you want to sample. Furthermore it provides a good directivity > 15 dB which is related to the isolation between input port and coupling port.

    Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.

    Please feel free to ask if you need any customisation or answers to your questions about this product.
