Dimensions: 150 x 25.4 x 10 mm (5.91 x 1 x 0.39 Inche(s)).

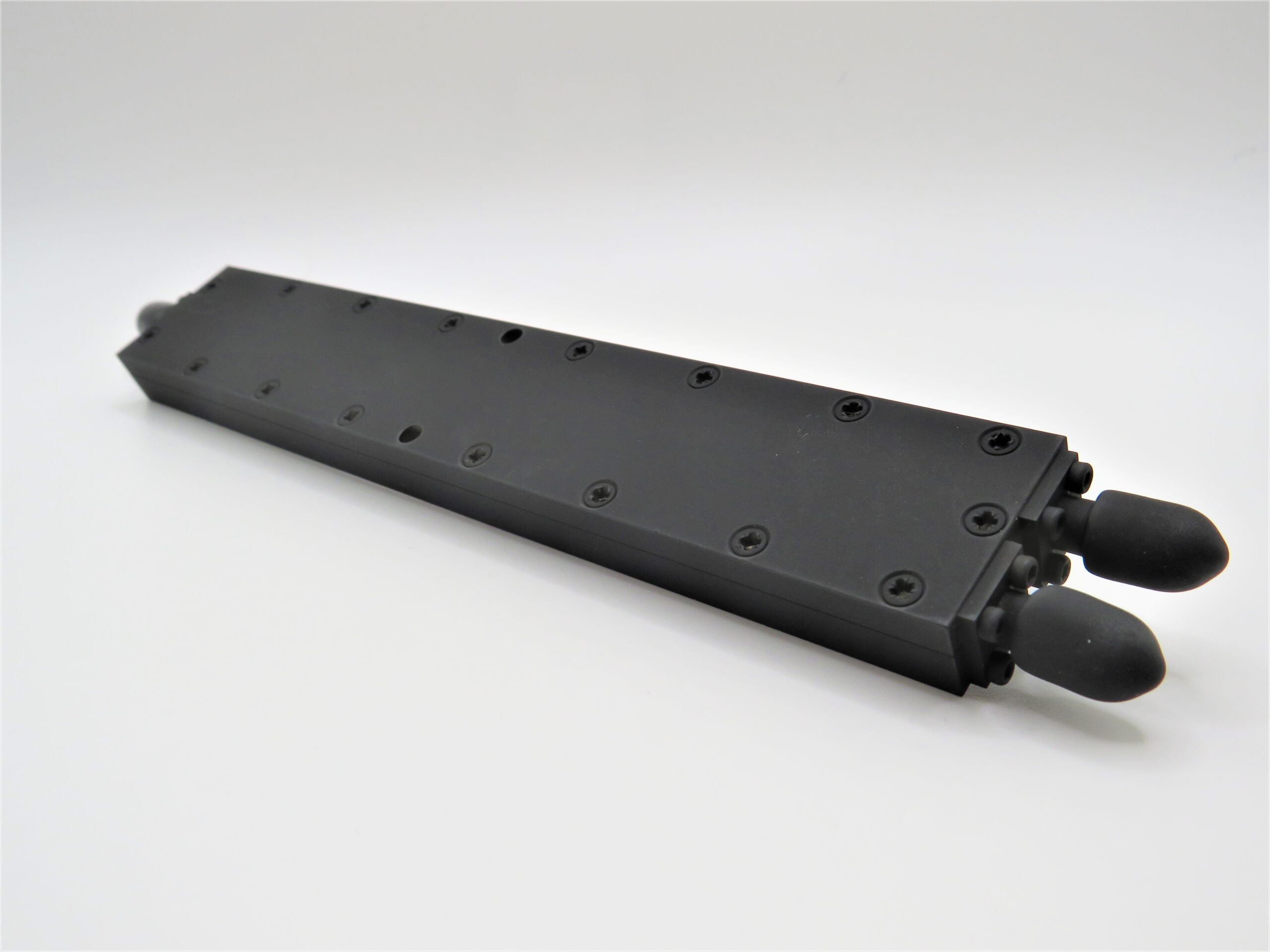

2-Way Power Divider 0.4-6 GHz
DI-2-400-6000-30-SF-SF
Part number: 800037
This 2-Way power divider, based on a Wilkinson stripline technology covers a frequency band from 400 up to 6000 MHz.
Compact and robust it offers an excellent isolation and low insertion losses. For both commercial and military applications, this product is MIL-STD-202 compliant.
lead time:
8-10 weeks
?Stock: 1
Additional Information
| Ways | 2 |
|---|---|
| Fmin (MHz) | 400 |
| Fmax (MHz) | 6000 |
| Insertion Loss(dB) | 1.2 |
| AmplitudeBalance(dB) | 0.3 |
| PhaseBalance(Degree) | 5 |
| Isolation(dB) | 17 |
| VSWR | 1.4:1 |
| Power Handling (W) | 30 |
| Connectors | SMA |
| Weight (g) | 110 |
| ROHS Compliance | ROHS compliant against ROHS 10 substances (2015/863/EU) |
| MIL-STD | MIL-STD-202 compliant |
| Warranty | 3 years |
Product Description
This 2-Way power divider 800037 covers a frequency band from 400 up to 6000 MHz. Compact and robust thanks to its Wilkinson stripline technology, it offers insertion losses of 1.2 dB, a amplitude balance of 0.3 dB, a phase balance of 5 degrees, an isolation of 17 dB and a VSWR of 1.4:1.
The power handling is 30 W average on the input port when output ports are loaded with VSWR better then 1.20:1. The operating temperature covers a range from -40°C up to +85°C. The storage temperature range is -55°C to +125°C.
This product handles mechanical shocks in compliance with MIL-STD-202: Method 213 – Test condition C (100g 6ms ½), Sinus vibrations in compliance with MIL-STD-202: Method 204D – Test condition A (10g / 10-2000Hz), Thermal shocks in compliance with MIL-STD-202: Method 107G – Test condition A (-40°C/+85°C) and humidity in compliance with MIL-STD-202: Method 103 – Test condition B (95% 96H).
