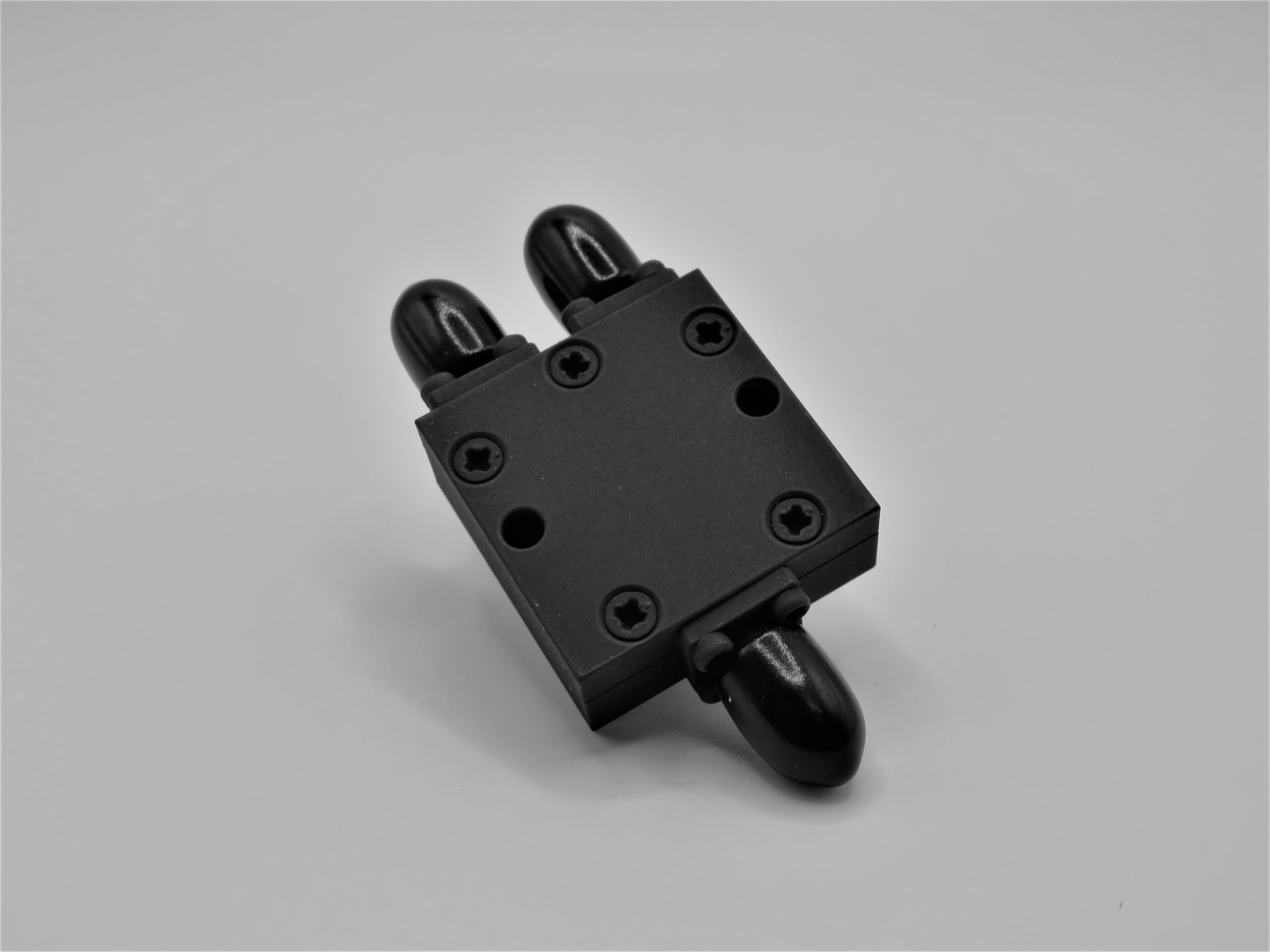

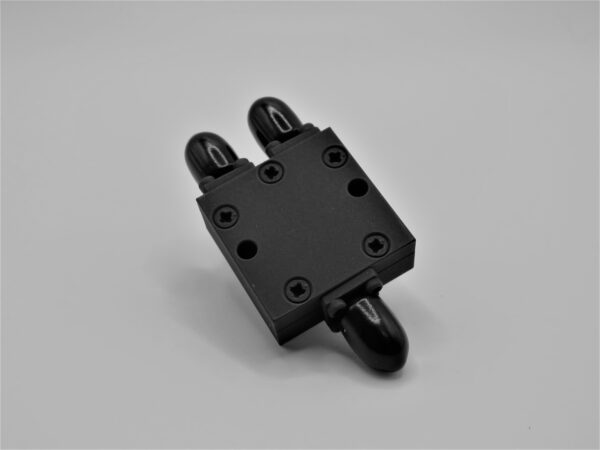

    2-Way Power Divider 8-12 GHz

    DI-2-8000-12000-30-SF-SF
    Part number: 011199

    367,00

    This 2-Way power divider, based on a Wilkinson stripline technology covers a frequency band from 8000 up to 12000 MHz.
    Compact and robust it offers an excellent isolation and low insertion losses. For both commercial and military applications, this product is MIL-STD-202 compliant.

    lead time:
    8-10 weeks
    ?
    Stock: 0

    ?

    Quantity Price
    1 - 9 367,00
    10 - 24 292,00
    25 - 49 239,00
    50+ 221,00
    Prices do not include import duties that may apply out of Europe
    Add to compare

    Additional Information

    Ways

    2

    Fmin (MHz)

    8000

    Fmax (MHz)

    12000

    Insertion Loss(dB)

    0.3

    AmplitudeBalance(dB)

    0.2

    PhaseBalance(Degree)

    3

    Isolation(dB)

    20

    VSWR

    1.35:1

    Power Handling (W)

    30

    Connectors

    SMA

    Weight (g)

    30

    ROHS Compliance

    ROHS compliant against ROHS 10 substances (2015/863/EU)

    MIL-STD

    MIL-STD-202 compliant

    Warranty

    3 years

    Product Description

    This 2-Way power divider 011199 covers a frequency band from 8000 up to 12000 MHz. Compact and robust thanks to its Wilkinson stripline technology, it offers insertion losses of 0.3 dB, a amplitude balance of 0.2 dB, a phase balance of 3 degrees, an isolation of 20 dB and a VSWR of 1.35:1.
    The power handling is 30 W average on the input port when output ports are loaded with VSWR better then 1.20:1. The operating temperature covers a range from -40°C up to +85°C. The storage temperature range is -55°C to +125°C.
    This product handles mechanical shocks in compliance with MIL-STD-202: Method 213 – Test condition C (100g 6ms ½), Sinus vibrations in compliance with MIL-STD-202: Method 204D – Test condition A (10g / 10-2000Hz), Thermal shocks in compliance with MIL-STD-202: Method 107G – Test condition A (-40°C/+85°C) and humidity in compliance with MIL-STD-202: Method 103 – Test condition B (95% 96H).
