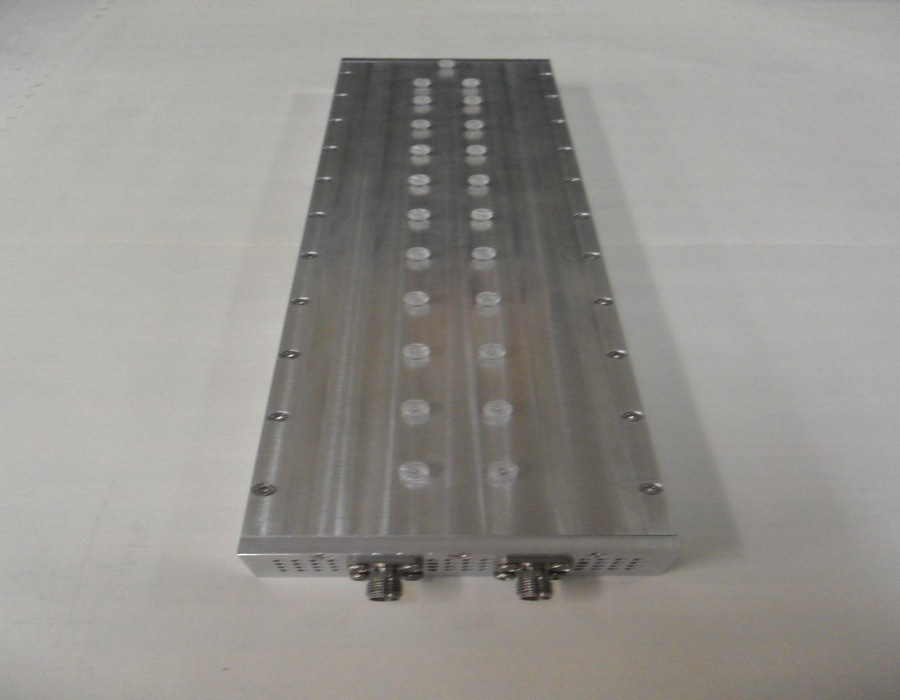

    2-Way 800 – 4200 MHz Power Combiner – 150 W

    CO-2-800-4200-75-SF-SF
    Part number: 001517

    This 2-way Wilkinson power combiner covers the 800-4200 MHz frequency range, and can output up to 150 W of continuous power. This device shows a great VSWR <1.5:1 and a high isolation of 12 dB. As all our products it is made in-house and comes a 3 years warranty.

    Stock: 0
    Add to compareRequest quotation

    Additional Information

    Ways

    2

    Fmin (MHz)

    800

    Fmax (MHz)

    4200

    Insertion losses (dB)

    0.4

    Input VSWR

    1.5:1

    Output VSWR

    1.5:1

    Isolation (dB)

    12

    Amplitude Balance (dB)

    -/+ 0.2

    Phase Balance (°)

    5

    Power Handling (W)

    150

    Input Connectors

    SMA

    Output Connector

    SMA

    Warranty

    3 years

    Product Description

    This power combiner (PN 001517) allows you to merge 2 in-phase signals into 1 on the 800 – 4200 MHz frequency range. It can output up to 150 W CW on a large operating temperature range of 0°C to +40°C. Furthermore it allows you to get the best out of your sources by having a low VSWR(<1.5:1), and low insertion losses(<0.4dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (12 dB min) in order to prevent your sources from damaging one another. Moreover as a Wilkinson Power Combiner it can also be used as a power splitter with the same specifications.
