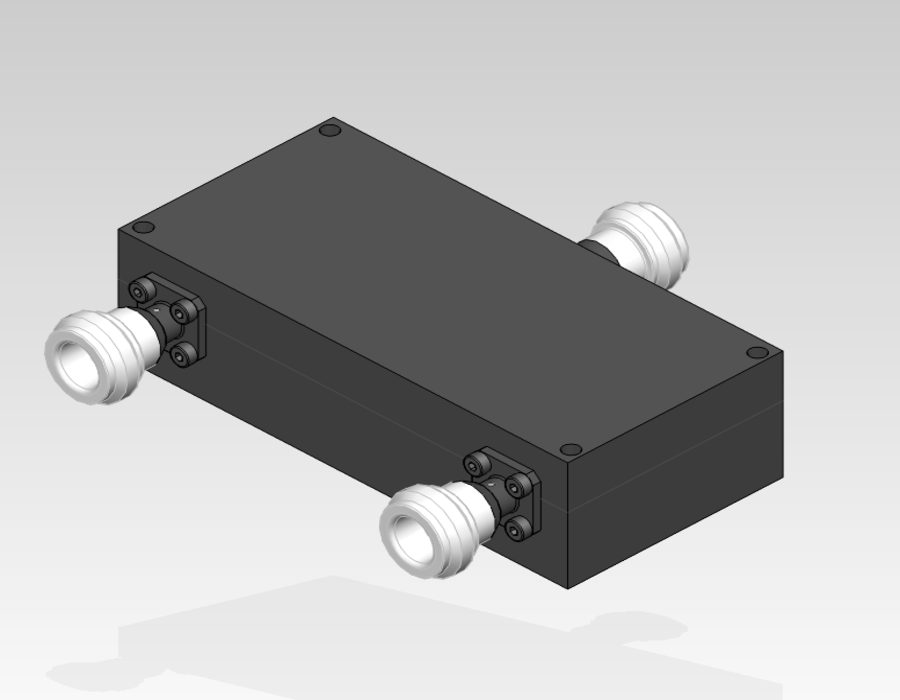

    2-Way 5400 – 5900 MHz Power Combiner – 400 W

    CO-2-5400-5900-400-NF-NF
    Part number: 011129

    This 2-way power combiner covers the 5400-5900 MHz frequency range, and can output up to 400 W of continuous power. This device shows a great VSWR <1.3:1 and a high isolation of 18 dB. As all our products it is made in-house and comes a 3 years warranty.

    Stock: 0
    Add to compareRequest quotation

    Additional Information

    Ways

    2

    Fmin (MHz)

    5400

    Fmax (MHz)

    5900

    Insertion losses (dB)

    0.4

    Input VSWR

    1.3:1

    Output VSWR

    1.3:1

    Isolation (dB)

    18

    Amplitude Balance (dB)

    -/+ 0.2

    Phase Balance (°)

    3

    Power Handling (W)

    400

    Peak Power (kW)

    4

    Input Connectors

    N

    Output Connector

    N

    Warranty

    3 years

    Product Description

    This power combiner (Part number: 011129) allows you to merge 2 in-phase signals into 1 on the 5400 – 5900 MHz frequency range. It can output up to 400 W CW on a large operating temperature range of -40°C to +55°C. Furthermore it allows you to get the best out of your sources by having a low VSWR(<1.3:1), and low insertion losses(<0.4dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (18 dB min) in order to prevent your sources from damaging one another. Moreover as a Gysel Power Combiner it can also be used as a power splitter with the same specifications.
