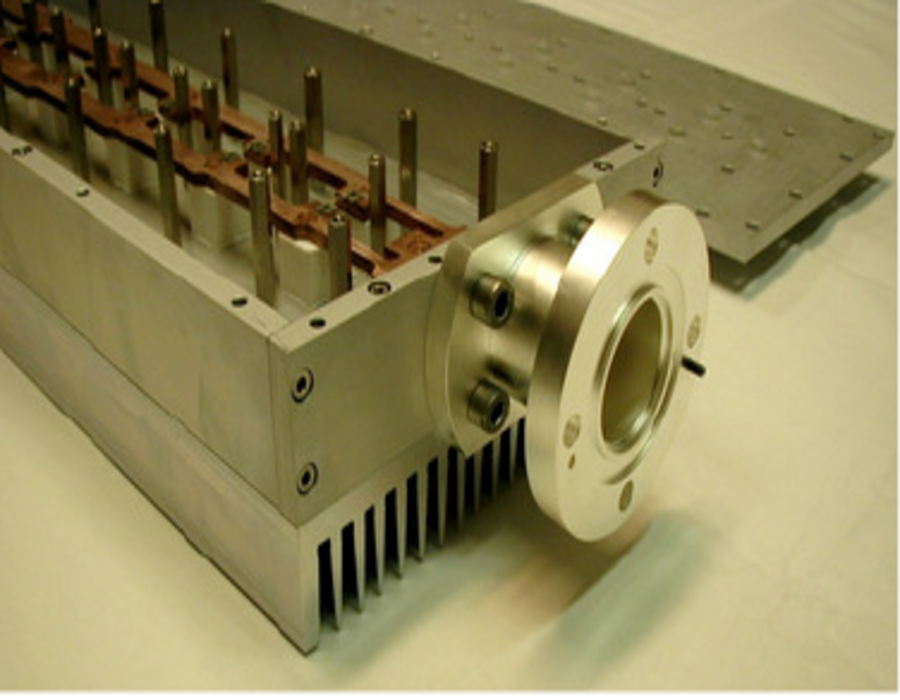

    2-Way 200 – 1000 MHz Power Combiner – 4000 W

    CO-2-200-1000-2000-716F-158
    Part number: 001435

    This 2-way power combiner covers the 200-1000 MHz frequency range, and can output up to 4000 W of continuous power. This device shows a great VSWR <1.5:1 and a high isolation of 15 dB. As all our products it is made in-house and comes a 3 years waranty.

    Stock: 0
    CompareRequest quotation

    Additional Information

    Ways

    2

    Fmin (MHz)

    200

    Fmax (Mhz)

    1000

    Insertion losses (dB)

    0.6

    Input VSWR

    1.5:1

    Output VSWR

    1.5:1

    Isolation (dB)

    15

    Amplitude Balance (dB)

    -/+ 0.1

    Phase Balance (°)

    -/+ 5

    Power Handling (W CW)

    4000

    Input Connector

    42552

    Output Connector

    1, 625

    Warranty

    3 years

    Product Description

    This power combiner allows you to merge 2 in-phase signals into 1 on the 200 – 1000 MHz frequency range. It can output up to 4000 W CW on a large operating temperature range of 0°C to +50°C. Futhermore it allows you to get the best out of your sources by having a low VSWR(<1.5:1), and low insertion losses(<0.6dB) and low phase/amplitude balance. This rugged piece of equiment shows and high isolation (15 dB min) in order to prevent your sources from damaging one another. Moreover as a Wilkinson Power Combiner it can also be used as a power splitter with the same specifications.
