Dimensions: 150 x 120 x 25.4 mm ( 5.91 x 4.72 x 1 Inch(es)).

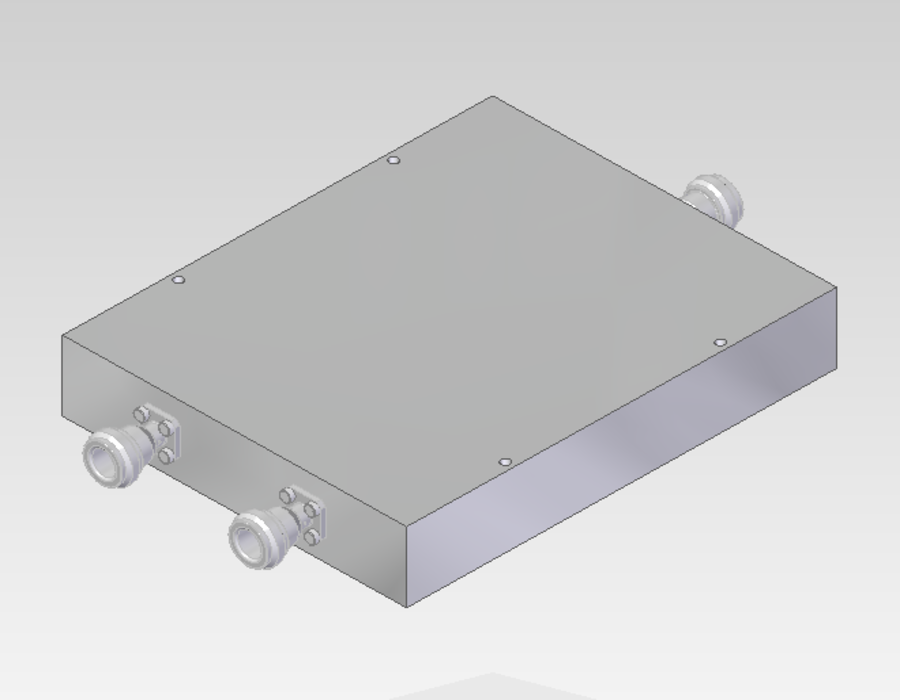

2-Way 100 – 512 MHz Power Combiner – 200 W
CO-2-100-500-200-NF-NF
Part number: 011140This 2-way Wilkinson power combiner covers the 100-512 MHz frequency range, and can output up to 200 W of continuous power. This device shows a great VSWR <1.5:1 and a high isolation of 20 dB. As all our products it is made in-house and comes a 3 years warranty.
Stock: 0
Additional Information
| Ways | 2 |
|---|---|
| Fmin (MHz) | 100 |
| Fmax (MHz) | 512 |
| Insertion losses (dB) | 0.8 |
| Input VSWR | 1.5:1 |
| Output VSWR | 1.5:1 |
| Isolation (dB) | 20 |
| Amplitude Balance (dB) | -/+0.3 |
| Phase Balance (°) | 5 |
| Power Handling (W) | 200 |
| Input Connectors | N |
| Output Connector | N |
| Warranty | 3 years |
Product Description
This power combiner (PN 011140) allows you to merge 2 in-phase signals into 1 on the 100 – 512 MHz frequency range. It can output up to 200 W CW on a large operating temperature range of -40°C to +85°C. Furthermore it allows you to get the best out of your sources by having a low VSWR(<1.5:1), and low insertion losses(<0.8dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (20 dB min) in order to prevent your sources from damaging one another. Moreover as a Wilkinson Power Combiner it can also be used as a power splitter with the same specifications.
