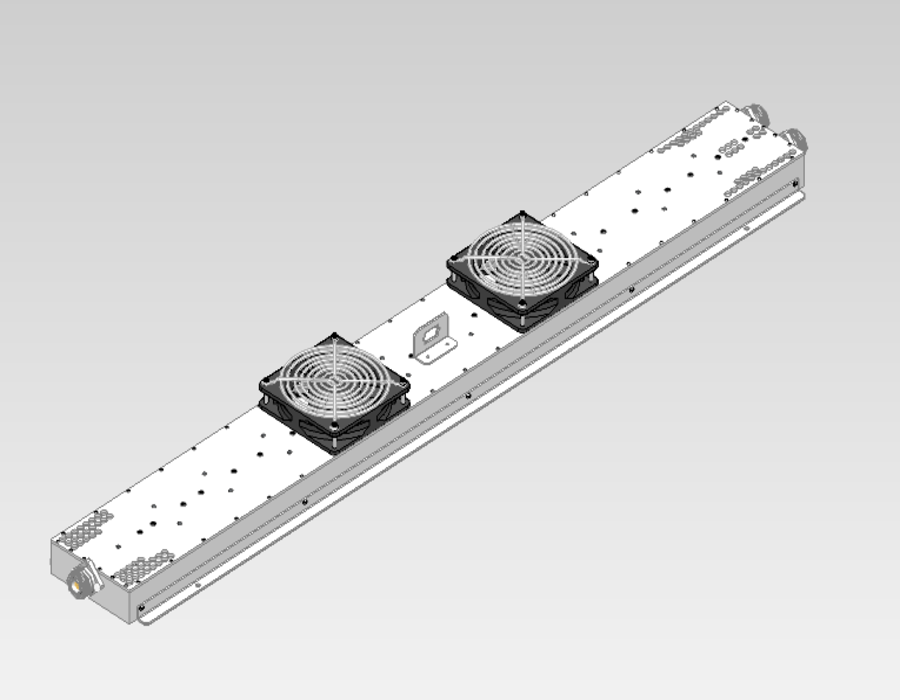

    2-Way 80 – 1000 MHz Power Combiner – 2800 W

    CO-2-80-1000-1400-716F-716F
    Part number: 001549

    This 2-way power combiner covers the 80-1000 MHz frequency range, and can output up to 2800 W of continuous power. This device shows a great VSWR <1.2:1 and a high isolation of 15 dB. As all our products it is made in-house and comes a 3 years waranty.

    Stock: 0
    Add to compareRequest quotation

    Additional Information

    Ways

    2

    Fmin (MHz)

    80

    Fmax (MHz)

    1000

    Insertion losses (dB)

    0.3

    Input VSWR

    1.2:1

    Output VSWR

    1.2:1

    Isolation (dB)

    15

    Amplitude Balance (dB)

    -/+ 0.15

    Phase Balance (°)

    5

    Power Handling (W)

    2800

    Input Connectors

    7/16

    Output Connector

    7/16

    Warranty

    3 years

    Product Description

    This power combiner (PN 001549) allows you to merge 2 in-phase signals into 1 on the 80 – 1000 MHz frequency range. It can output up to 2800 W CW on a large operating temperature range of 0°C to +50°C. Futhermore it allows you to get the best out of your sources by having a low VSWR(<1.2:1), and low insertion losses(<0.3dB) and low phase/amplitude balance. This rugged piece of equiment shows and high isolation (15 dB min) in order to prevent your sources from damaging one another. Moreover as a Wilkinson Power Combiner it can also be used as a power splitter with the same specifications.
