Dimensions: 23.7 x 14.1 x 10 mm ( 0.93 x 0.56 x 0.39 Inch(es)).

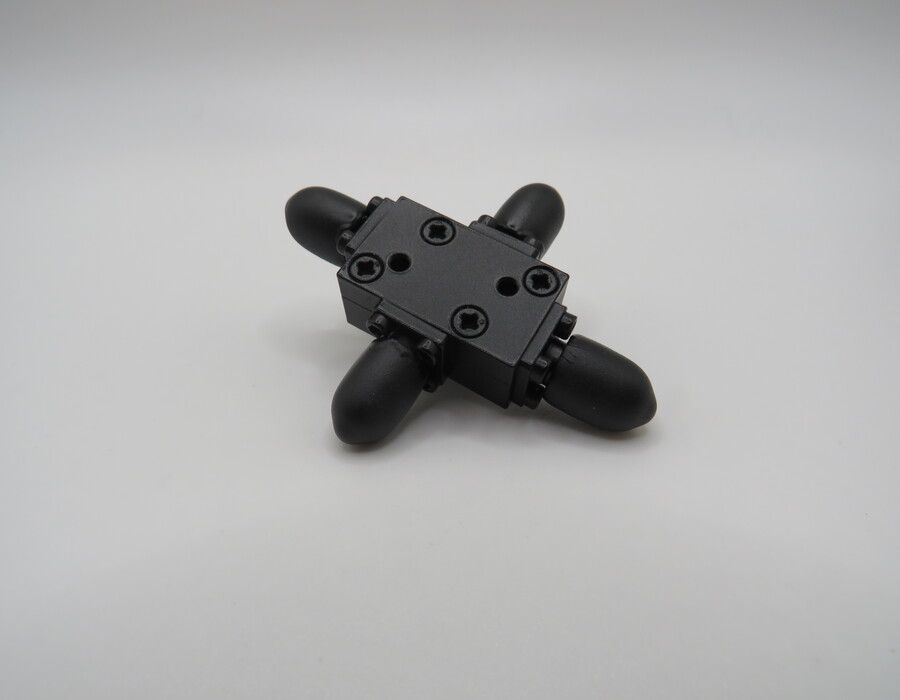

180° Hybrid Coupler 25.5 – 27 GHz – 10 W
CH-180-25500-27000-10-KF-C
Part number: 800034
This 180° 3dB hybrid coupler covers the range 25500 – 27000 MHz and provides a great isolation > 18 dB. With only 0,5 dB of insertion loss, this product offers a good VSWR < 1.5:1 on its main line and can handle up to 10 W of power.
lead time:
8-10 weeks
?Stock: 1
Additional Information
| Fmin (MHz) | 25500 |
|---|---|
| Fmax (MHz) | 27000 |
| Coupling (dB) | 3 |
| Phase (°) | 180 |
| Insertion Losses (dB) | 0.5 |
| Amplitude Balance (dB) | 0.3 |
| Phase Balance (°) | 5 |
| VSWR (Main line) | 1.5:1 |
| VSWR (Coupling Line) | 1.5:1 |
| Coupling Flatness (dB) | 0.5 |
| Isolation (dB) | 18 |
| Power Handling (W) | 10 |
| Connectors (Main Line) | K (2.92 mm) |
| Connectors (Coupling Line) | K (2.92 mm) |
| Weight (g) | 20 |
| ROHS | ROHS compliant against RoHS 10 substances (2015/863/EU) |
| Warranty | 3 years |
Product Description
This 180° Hybrid Coupler ( P/N: 800034 ) allows you to split a 25500 to 27000 MHz input signal into two output signals with a 180° phase shift. Also kown as a quadrature coupler, it shows very low insertion losses < 0,5 dB, vswr < 1.5:1 and phase/ amplitude balance (5° / 0,3 dB) while keep a strong 18 dB of isolation. This coupler is ROHS compliant. Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
Please feel free to ask if you need any customisation or answers to your questions about this product.
