Dimensions: 76.2 x 76.2 x 19 mm ( 3 x 3 x 0.75 Inch(es)).

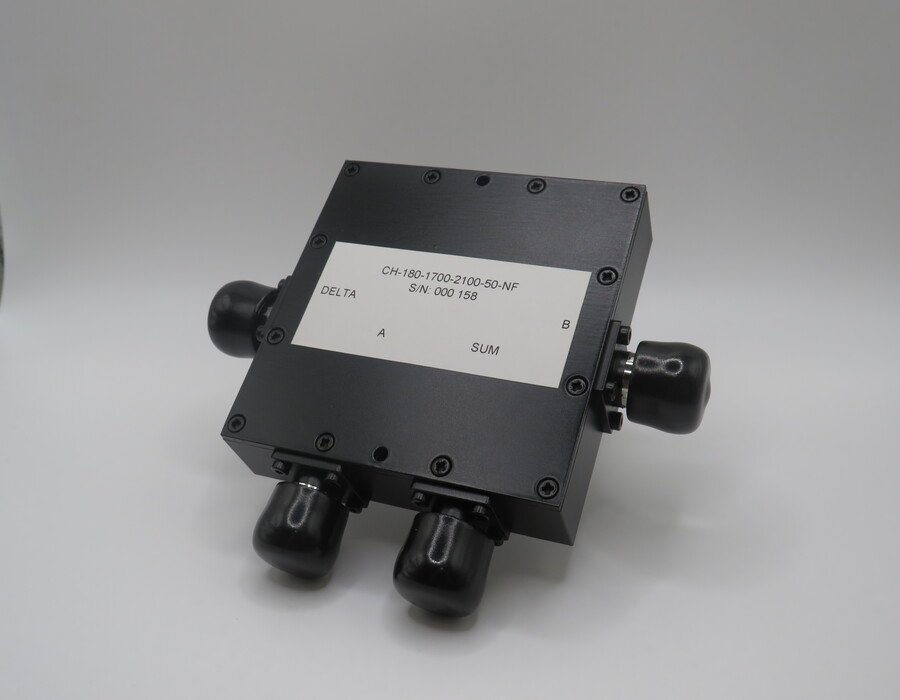

180° Hybrid coupler 1700 – 2100 MHz – 50 W
CH-180-1700-2100-50-NF
Part number: 001695
This 180° 3dB hybrid coupler covers the range 1700 – 2100 MHz and provides a great isolation > 18 dB. With only 0,5 dB of insertion loss, this product offers a good VSWR < 1.5:1 on its main line and can handle up to 50 W of power.
lead time:
8-10 weeks
?Stock: 2
Additional Information
| Fmin (MHz) | 1700 |
|---|---|
| Fmax (MHz) | 2100 |
| Coupling (dB) | 3 |
| Phase (°) | 180 |
| Insertion Losses (dB) | 0.5 |
| Amplitude Balance (dB) | 0.4 |
| Phase Balance (°) | 10 |
| VSWR (Main line) | 1.5:1 |
| VSWR (Coupling Line) | 1.5:1 |
| Isolation (dB) | 18 |
| Power Handling (W) | 50 |
| Connectors (Main Line) | N |
| Connectors (Coupling Line) | N |
| ROHS | ROHS compliant against RoHS 10 substances (2015/863/EU) |
| Warranty | 3 years |
Product Description
This 180° Hybrid Coupler 001695 allows you to split a 1700 to 2100 MHz input signal into two output signals with a 180° phase shift. Also kown as a quadrature coupler, it shows very low insertion losses < 0,5 dB, vswr < 1.5:1 and phase/ amplitude balance (10° / 0,4 dB) while keep a strong 18 dB of isolation. This coupler is ROHS compliant. Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
Please feel free to ask if you need any customisation or answers to your questions about this product.
