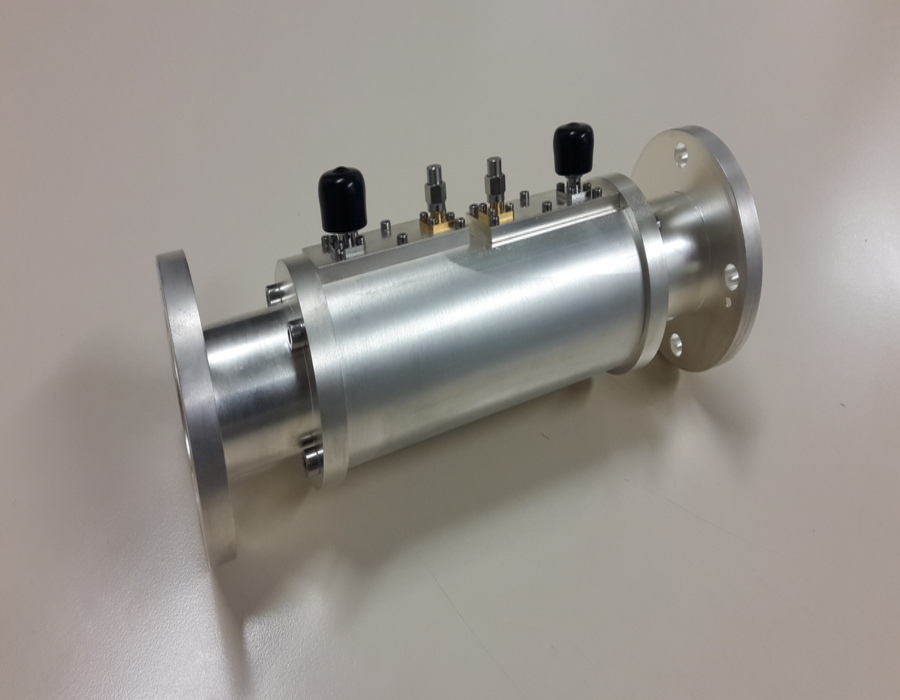

    1700-2100 MHz Dual Directional Coupler – 50 dB – 2500 W

    CD-2-1700-2100-50-40-2500-158-158-NF
    Part number: 800072

    1550,00

    This 50 dB low loss high power directional coupler covers the range 1700-2100 MHz and provides a great directivity > 20 dB. With only 0,3 dB of insertion loss, this product offers a good VSWR < 1.2:1 and can handle up to 2500 W.

    Stock: 1

    In stock

    ?

    Add to compare

    Additional Information

    Fmin (MHz)

    1700

    Fmax (MHz)

    2100

    Coupling (dB)

    50

    Reverse Coupling (dB)

    40

    Directivity (dB)

    20

    Insertion Losses (dB)

    0.3

    VSWR (Main line)

    1.2:1

    VSWR (Coupling Line)

    1.2:1

    Power Handling (W)

    2500

    Connectors (Main Line)

    1-5/8

    Connectors (Coupling Line)

    N

    Warranty

    3 years

    Product Description

    This Coaxial Coupler ( P/N: 800072 ) allows you to sample 50 dB of any of your signals ranging 1700 to 2100 MHz and with a continuous power < 2500 W CW. Thanks to its low insertion losses < 0,3 dB (excluding coupling losses) and VSWR ( < 1.2:1 on main line and 1.2:1 on the coupled line), this product does not disrupt the signal you want to sample. Furthermore it provides a good directivity > 20 dB which is related to the isolation between input port and coupling port.

    Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.

    Please feel free to ask if you need any customisation or answers to your questions about this product.
