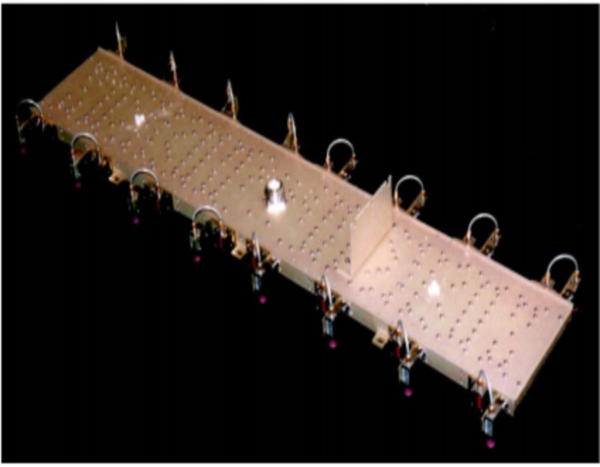

    16-Way 2025 – 2120 MHz Power Combiner – 640 W

    CO-16-2025-2120-40-SF-716F
    Part number: 001144

    This 16-way power combiner covers the 2025-2120 MHz frequency range, and can output up to 640 W of continuous power. This device shows a great VSWR <1.25:1 and a high isolation of 25 dB. As all our products it is made in-house and comes a 3 years waranty.

    Stock: 0
    Add to compareRequest quotation

    Additional Information

    Ways

    16

    Fmin (MHz)

    2025

    Fmax (MHz)

    2120

    Insertion losses (dB)

    0.5

    Input VSWR

    1.25:1

    Output VSWR

    1.25:1

    Isolation (dB)

    25

    Amplitude Balance (dB)

    -/+ 0.5

    Phase Balance (°)

    10

    Power Handling (W)

    640

    Input Connectors

    SMA

    Output Connector

    7/16

    Warranty

    3 years

    Product Description

    This power combiner (Part number: 001144) allows you to merge 16 in-phase signals into 1 on the 2025 – 2120 MHz frequency range. It can output up to 640 W CW on a large operating temperature range of 0°C to +50°C. Futhermore it allows you to get the best out of your sources by having a low VSWR(<1.25:1), and low insertion losses(<0.5dB) and low phase/amplitude balance. This rugged piece of equiment shows and high isolation (25 dB min) in order to prevent your sources from damaging one another. Moreover as a Wilkinson Power Combiner it can also be used as a power splitter with the same specifications.
