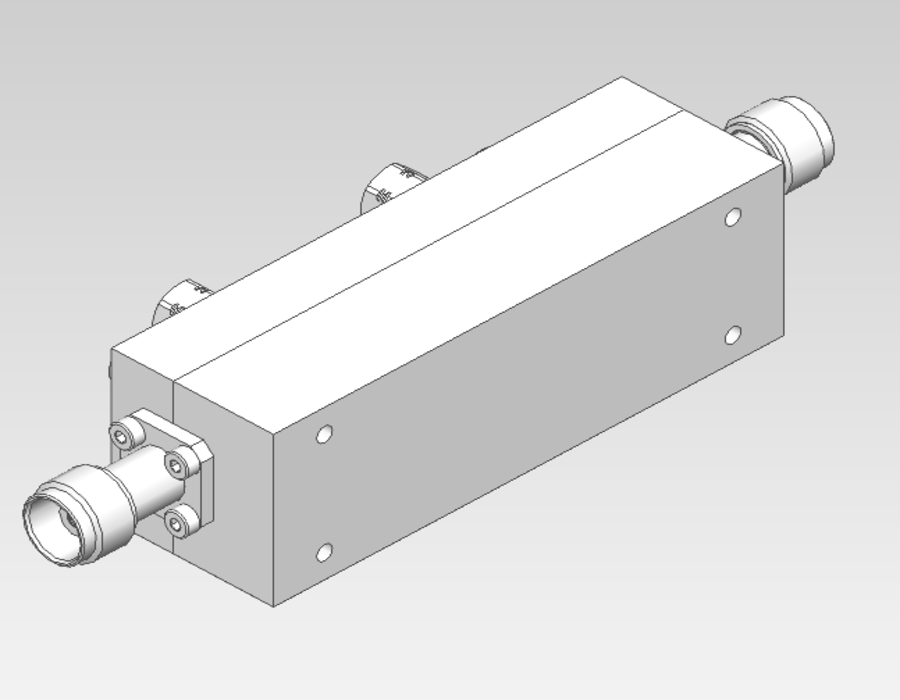

    15000-18000 MHz Dual Directional Coupleur – 40 dB – 120 W

    CD-2-15000-18000-40-30-120-TF-TM-SF
    Part number: 001639

    This 40 dB low loss high power directional coupler covers the range 15000-18000 MHz and provides a great directivity > 20 dB. With only 0,5 dB of insertion loss, this product offers a good VSWR < 1.5:1 and can handle up to 120 W.

    Stock: 0
    CompareRequest quotation

    Additional Information

    Fmin (MHz)

    15000

    Fmax (Mhz)

    18000

    Coupling (dB)

    40

    Reverse Coupling (dB)
    Directivity (dB)

    20

    Insertion Losses (dB)

    0.5

    VSWR (Main line)

    1.5:1

    VSWR (Coupling Line)

    1.5:1

    Power Handling (W CW)

    120

    Peak Power (kW)

    0.4

    Connector (Main Line)

    TNC

    Connector (Coupling Line)

    SMA

    Warranty

    3 years

    Product Description

    This Coaxial Coupler allows you to sample 40 dB of any of your signals ranging 15000 to 18000 MHz and with a continuous power < 120 W CW. Please note that this product can also deal with very high peak power up to peak power0,4 W. Thanks to its low insertion losses < 0,5 dB (excluding coupling losses) and VSWR ( < 1.5:1 on main line and 1.5:1 on the coupled line), this product does not disrupt the signal you want to sample. Furthermore it provides a good directivity > 20 dB which is related to the isolation between input port and coupling port.

    Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.

    Please feel free to ask if you need any customisation or answers to your questions about this product.
