Dimensions: 100 x 40 x 20 mm ( 3.94 x 1.57 x 0.79 Inch(es)).
1000-4000 MHz Dual Directional Coupler – 20 dB – 160 W
CD-2-1000-4000-20-20-160-NM-NF-NF
Part number: 011097This 20 dB low loss high power directional coupler covers the range 1000-4000 MHz and provides a great directivity > 20 dB. With only 0,3 dB of insertion loss, this product offers a good VSWR < 1.15:1 and can handle up to 160 W.
Stock: 0
Additional Information
| Fmin (MHz) | 1000 |
|---|---|
| Fmax (MHz) | 4000 |
| Coupling (dB) | 20 |
| Coupling value tolerance (dB) | 1 |
| Directivity (dB) | 20 |
| Insertion Losses (dB) | 0.3 |
| VSWR (Main line) | 1.15:1 |
| VSWR (Coupling Line) | 1.15:1 |
| Power Handling (W) | 160 |
| Peak Power (kW) | 3 |
| Connectors (Main Line) | N |
| Connectors (Coupling Line) | N |
| ROHS | ROHS compliant against RoHS 10 substances (2015/863/EU) |
| Warranty | 3 years |
Product Description

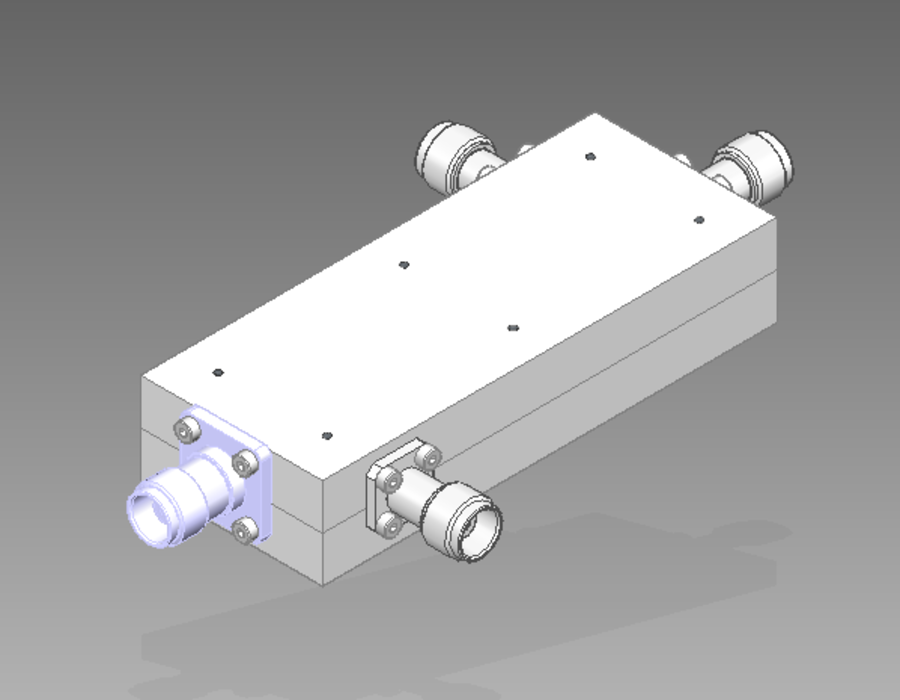

This Coaxial Coupler 011097 allows you to sample 20 dB of any of your signals ranging 1000 to 4000 MHz and with a continuous power < 160 W CW. Please note that this product can also deal with very high peak power up to 3 kW. Thanks to its low insertion losses < 0,3 dB (excluding coupling losses) and VSWR ( < 1.15:1 on main line and 1.15:1 on the coupled line), this product does not disrupt the signal you want to sample. Furthermore it provides a good directivity > 20 dB which is related to the isolation between input port and coupling port.
Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
Please feel free to ask if you need any customisation or answers to your questions about this product.
