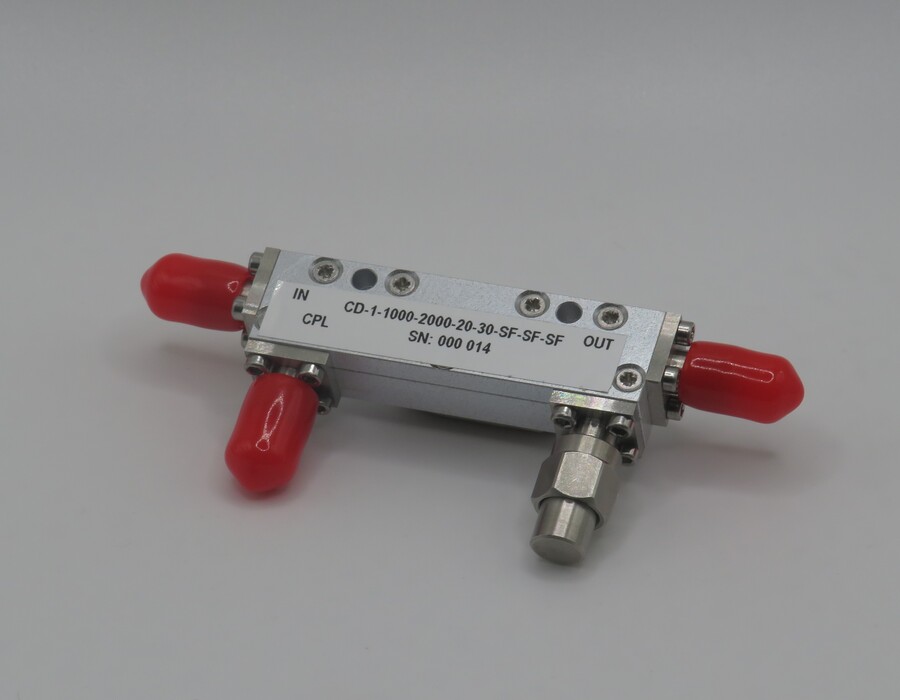

    1000-2000 MHz Directional Coupler – 20 dB – 30 W

    CD-1-1000-2000-20-30-SF-SF-SF
    Part number: 800060

    460,00

    This 20 dB stripline directional coupler covers the range 1000-2000 MHz and provides a great directivity > 23 dB. With only 0,2 dB of insertion loss, this product offers a good VSWR < 1.2:1 and can handle up to 30 W.

    lead time:
    8-10 weeks
    ?
    Stock: 1

    In stock

    ?

    Add to compare

    Additional Information

    Fmin (MHz)

    1000

    Fmax (MHz)

    2000

    Coupling (dB)

    20

    Directivity (dB)

    23

    Insertion Losses (dB)

    0.2

    VSWR (Main line)

    1.2:1

    VSWR (Coupling Line)

    1.2:1

    Power Handling (W)

    30

    Peak Power (kW)

    3

    Connectors (Main Line)

    SMA

    Connectors (Coupling Line)

    SMA

    Weight (g)

    30

    ROHS

    ROHS compliant against RoHS 10 substances (2015/863/EU)

    MIL-STD

    Compliant

    Warranty

    3 years

    Product Description

    This Stripline Coupler 800060 allows you to sample 20 dB of any of your signals ranging 1000 to 2000 MHz and with a continuous power < 30 W. Thanks to its low insertion losses < 0,2 dB (excluding coupling losses) and VSWR ( < 1.2:1 on main line and 1.2:1 on the coupled line), this product does not disrupt the signal you want to sample. Furthermore it provides a good directivity > 23 dB which is related to the isolation between input port and coupling port.

    Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.

    Please feel free to ask if you need any customisation or answers to your questions about this product.
