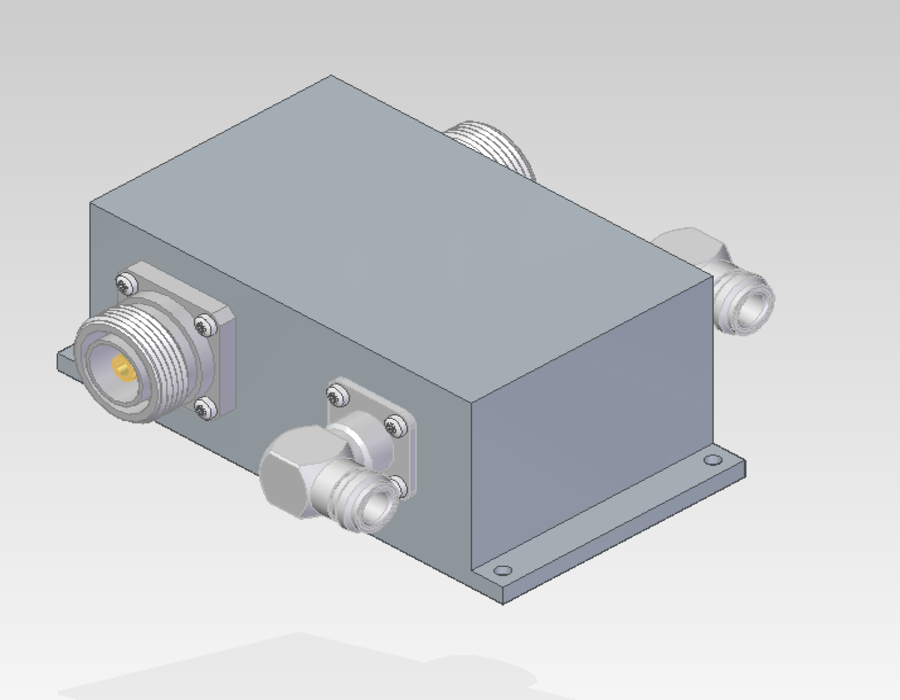

    1-30 MHz Dual Directional Coupleur – 50 dB – 6000 W

    CD-2-1-30-50-50-6000-716F-716F-NF
    Part number: 011104

    This 50 dB low loss high power directional coupler covers the range 1-30 MHz and provides a great directivity > 20 dB. With only 0,1 dB of insertion loss, this product offers a good VSWR < 1.3:1 and can handle up to 6000 W.

    Stock: 0
    CompareRequest quotation

    Additional Information

    Fmin (MHz)

    1

    Fmax (Mhz)

    30

    Coupling (dB)

    50

    Coupling value tolerance

    1

    Directivity (dB)

    20

    Insertion Losses (dB)

    0.1

    VSWR (Main line)

    1.3:1

    VSWR (Coupling Line)

    1.3:1

    Coupling Flatness (dB)

    0.5

    Power Handling (W CW)

    6000

    Connector (Main Line)

    42552

    Connector (Coupling Line)

    N

    Warranty

    3 years

    Product Description

    This Coaxial Coupler allows you to sample 50 dB of any of your signals ranging 1 to 30 MHz and with a continuous power < 6000 W CW. Please note that this product can also deal with very high peak power up to peak power W. Thanks to its low insertion losses < 0,1 dB (excluding coupling losses) and VSWR ( < 1.3:1 on main line and 1.3:1 on the coupled line), this product does not disrupt the signal you want to sample. Furthermore it provides a good directivity > 20 dB which is related to the isolation between input port and coupling port.

    Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.

    Please feel free to ask if you need any customisation or answers to your questions about this product.
